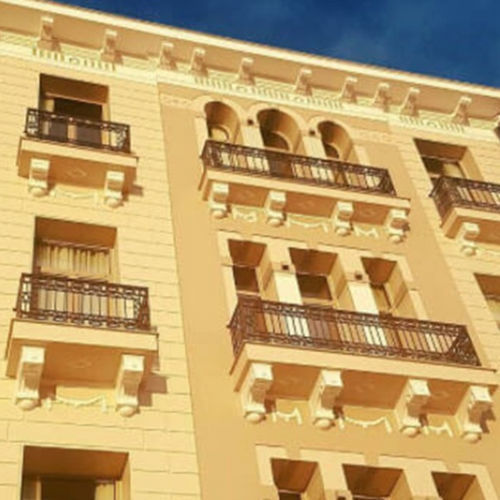

Tilt-and-turn window COMFORT M9400

casementaluminumdouble-glazed

Description
COMFORT M9400 is one of the most complete non-insulated aluminium casement systems, designed to cover a wide range of architectural applications while delivering consistent performance and functionality.

Advantages

• Very good value for money
• Good security level
• Good sound insulation
• Wide variety of profile designs
• Multiple solution options
• High functionality and ease of use

Certificates

• Cradle to Cradle Certified® (global standard for safe, circular and responsibly made products)
• Aluminum TUV Austria OK Recycled (TÜV Austria OK Recycled certificate)

Generic
Window type: Hinged
Thermal insulation: No
Exterior shape: Curved, Flat

Technical Characteristics
Frame depth: 45 mm
Minimum visible aluminium face height: 104 mm
Minimum visible aluminium face width at the central vertical column (adjoining profile): 153 mm
Glazing type: Single - Double - Triple
Maximum glazing thickness: from 4 mm up to 39 mm
Mechanism: Euro-groove, Euro-nut
Sealing method: Perimetrical at 3 levels with EPDM gaskets

Performance
Water tightness: CLASS E750
Air permeability: CLASS 4
Wind load resistance: C5
Sound reduction: 36 dB

Characteristics
Sash weight: up to 180 kg
Applicable typologies: For all tilt & turn typologies

Typologies

• One sash tilt and turn
• Tilt and turn with fixed light on top
• Tilt and turn with fanlight
• Double tilt and turn window
• Double tilt and turn with light
• Double tilt and turn window with fixed light
• Single sash tilt & turn with shutter
• Double tilt and turn window with shutter
• Hinged inwards entrance door with kick plate
• Hinged outwards entrance door with kick plate
• Double leaf action door

Characteristics / Technical specifications

• Model: COMFORT M9400
• System: Hinged non-insulated aluminium system
• Frame depth: 45 mm
• Minimum visible aluminium face height: 104 mm
• Minimum visible aluminium face width at central vertical column (adjoining profile): 153 mm
• Glazing type: Single / Double / Triple
• Maximum glazing thickness: from 4 mm up to 39 mm
• Mechanism: Euro-groove, Euro-nut
• Sealing method: Perimetrical at 3 levels with EPDM gaskets
• Water tightness: CLASS E750
• Air permeability: CLASS 4
• Wind load resistance: C5
• Sound reduction: 36 dB
• Sash weight: up to 180 kg
• Applicable typologies: all tilt & turn typologies
