Sliding gate automation ONDA 624

gatewith rechargeable batterysliding

Product name

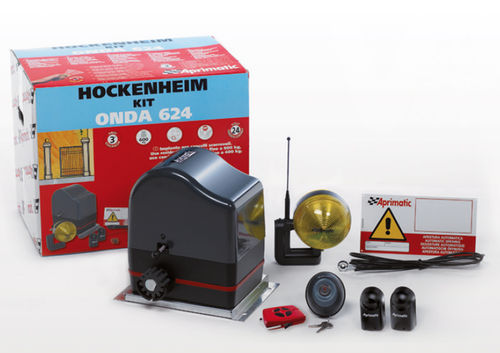

KIT HOCKENHEIM ONDA 624 (41102/800-802). Sliding gate automation kit for residential use (wings up to 600 kg) and condominium use (wings up to 400 kg).

Safety and control
Complies with EN12453 and EN12445 for obstacle detection and movement inversion (product certified under ideal installation conditions). Electronic torque adjustment combined with encoder technology ensures smooth, gradual approach during opening and closing movements.

Main features

• Continuity of operation can be ensured during power failure by optional batteries that fit into the operator casing.
• Die-cast aluminium casing for durability and protection of internal components.
• Worm-screw gear motor with aluminium body and integrated electronic control unit. Includes adjustable-height foundation plate.
• Emergency release lever with customised key for manual operation during power outages.

Table of components

• 41102/001 — ONDA 624 gear motor with dedicated on-board electronic control unit, 433.92 MHz built-in superheterodyne radio receiver, release key and foundation kit — 1
• 41905/004 — TM4 - 433.92 MHz four-channel transmitter — 1
• 41929/003 — KIT antenna 433.92 MHz for ET2N-ET20N — 1
• 41840/006 — ET2N 24V LED flashing light — 1
• 41812/008 — ER 12-24V Pair of photocells — 1
• 41830/007 — PC12E Wall-mounted key-operated switch — 1
• — Aprimatic signal panel — 1

Technical specifications

• Application: Sliding gate automation kit for residential and condominium use
• Max leaf weight: Residential up to 600 kg; Condominium up to 400 kg
• Standards: EN12453, EN12445
• Control: On-board electronic control unit with electronic torque adjustment and encoder technology
• Motor: Worm-screw gear motor with aluminium body
• Casing: Die-cast aluminium
• Power backup: Optional batteries available to guarantee operation in case of power failure
• Release: Emergency release lever with customised key
• Foundation: Adjustable-height foundation plate
• Radio: 433.92 MHz built-in receiver (gear motor) and TM4 transmitter included
• Accessories included: Antenna kit, 24V flashing light (ET2N), photocells (ER 12-24V), PC12E key-operated switch, Aprimatic signal panel
