Swing gate automation KIT TWENTY 270 C

gateswing

Product Summary
Kit for swing gates with hydraulic operator offering locking on opening and closing, designed for condominium use.

Design and Operation
Simple and linear design with compatible aesthetics for all types of gates.
The closing slowdown system (adjustable via the control unit) provides a soft approach of the wings, operating silently and reducing mechanical stress on the structure.

Safety and Maintenance
Emergency release system located under the top cover. Equipped with front 20 mm threaded uniball hitch allowing tolerance recovery during installation.
Sturdy and flexible pillar mounting enabled by the rear flange with articulated aluminium fork.

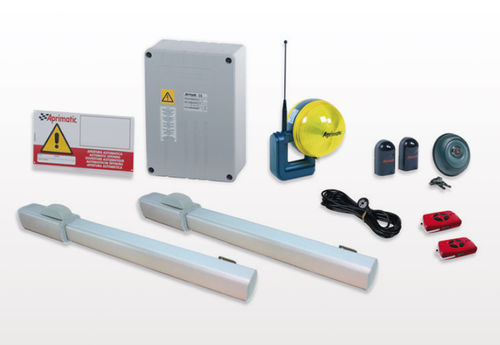

Included Items

• 41012/002 | Operator TWENTY 270 C | 2
• 41628/001 | BA230 control unit (with receiver 433.92 MHz) | 1
• 41905/004 | TM4 - 433.92 MHz four-channel transmitter | 2
• 41929/003 | KIT antenna 433.92 MHz for ET2N-ET20N | 1
• 41840/006 | ET2N - 24 V LED flashing light | 1
• 41812/008 | ER12-24V - Pair of photocells | 1
• 41830/007 | PC12E - Wall-mounted key-operated switch | 1
• Aprimatic signal panel | 1

Notes
Control unit features and radio frequency (433.92 MHz) for transmitter and antenna are listed among kit components.
