Sliding gate automation ONDA 623

modular

Overview
Sliding gate automation kit for residential gates up to 600 kg and condominium/community gates up to 400 kg. Includes ONDA 623 gear motor with on-board SC230 control unit and built-in 433.92 MHz radio receiver. Designed for installation with adjustable-height foundation plate and emergency release for manual operation during power interruptions.

Compliance and general features

• Complies with EN12453 and EN12445 for obstacle detection and movement inversion when installed under ideal conditions.
• Electronic torque adjustment combined with encoder technology provides controlled, gradual approach during opening and closing.
• Continuity of operation can be maintained via an optional battery set installable inside the operator casing.
• Die-cast aluminium casing for equipment housing.
• Worm-screw gear motor with aluminium body and integrated electronic control unit.
• Adjustable-height foundation plate included to facilitate alignment and installation.
• Emergency release lever with customised key for manual disengagement during power failures.

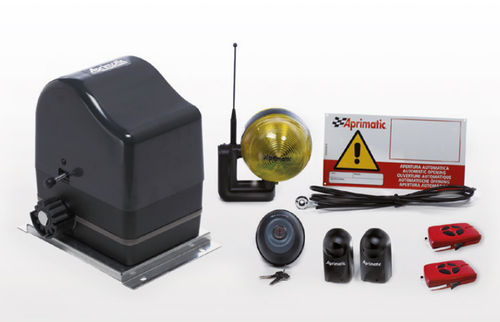

Package contents

• 41623/001 - ONDA 623 gear motor with on-board SC230 control unit; 433.92 MHz built-in radio receiver; release key; foundation plate kit. - 1 pc
• 41905/004 - TM4 - 433.92 MHz four-channel transmitter - 2 pcs
• 41929/003 - KIT antenna 433.92 MHz for ET2N-ET20N - 1 pc
• 41840/006 - ET2N 24V LED flashing light - 1 pc
• 41812/008 - ER 12-24V pair of photocells - 1 pc
• 41830/007 - PC12E wall-mounted key-operated switch - 1 pc
• (Aprimatic signal panel) - 1 pc

Technical specifications

• Model / denomination: ONDA 623
• Use: sliding gate automation kit for residential and condominium/community applications
• Maximum leaf weight: residential up to 600 kg; condominium/community up to 400 kg
• Motor type: worm-screw gear motor with aluminium body
• Control unit: SC230 on-board electronic control unit
• Safety: compliant with EN12453 and EN12445 under ideal installation conditions
• Torque control: electronic torque adjustment combined with encoder technology
• Radio: built-in 433.92 MHz receiver
• Accessories included: built-in radio receiver, release key, foundation plate kit, TM4 transmitters, antenna kit, flashing light, photocells, key-operated switch, signal panel
• Power backup: optional internal battery set can be fitted inside operator casing
• Casing: die-cast aluminium
• Emergency release: lever with customised key
• Foundation: adjustable-height foundation plate
