Garage door automation MATIC-BOX

for up-and-over garage doorswith rechargeable battery

Product description
Kit including a low-voltage electromechanical operator designed for residential up-and-over and sectional garage doors (sectional use requires adapter arm). The on-board electronic control unit features an auto-reverse function for anti-crushing protection. Belt drive provides quiet operation and long-term resistance. Optional batteries available for continuity of operation during power failures.

Features

• Low-voltage electromechanical operator
• On-board electronic control unit with auto-reverse (obstacle detection)
• 433.92 MHz radio control unit integrated
• Belt drive for quiet, durable operation
• Slowdown system for soft approach on opening and closing
• Timed courtesy light built into the operator
• Optional batteries can be fitted in the operator casing for emergency power
• Adaptable for sectional doors with adapter arm accessory

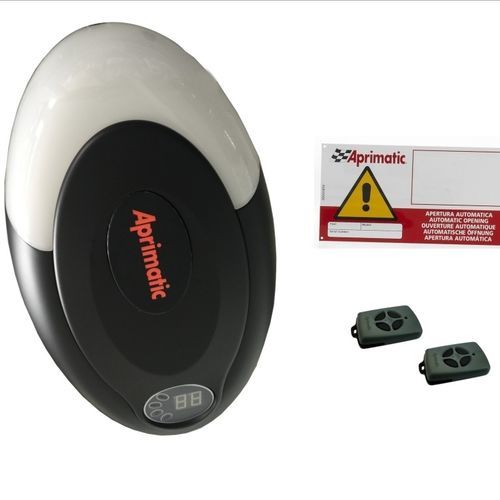

Package contents / Components

• 41243/800 — Motor MATIC-BOX 800 — On-board control unit 433.92 MHz — Guide not included (order separately) — Qty: 1
• 41243/810 — Motor MATIC-BOX 1200 — On-board control unit 433.92 MHz — Guide not included (order separately) — Qty: 1
• 41905/024 — TM4L 433.92 MHz four-channel transmitter — Qty: 2
• Aprimatic signal panel — (Aprimatic signal panel included as listed) — Qty: as per kit

Notes
Guides/rails are not included and must be ordered separately. Adapter arm required for use with sectional doors. Optional backup batteries are available to ensure continuity during power outages.

Technical specifications

• Model name: MATIC-BOX
• Operator type: low-voltage electromechanical
• Motor variants: MATIC-BOX 800, MATIC-BOX 1200
• Radio: 433.92 MHz control unit onboard
• Drive type: belt drive (silent, durable)
• Safety: on-board control with auto-reverse (anti-crushing)
• Soft-stop: slowdown system for soft approach on opening/closing
• Lighting: built-in timed courtesy light
• Power backup: optional batteries can be fitted in operator casing
• Application: residential up-and-over doors and sectional doors (with adapter arm)
• Guides: not included (order separately)
• Typical kit contents: motor unit (1), remote transmitters (2), Aprimatic signal panel
