Swing gate automation TWENTY 270 SF

gateswing

Product

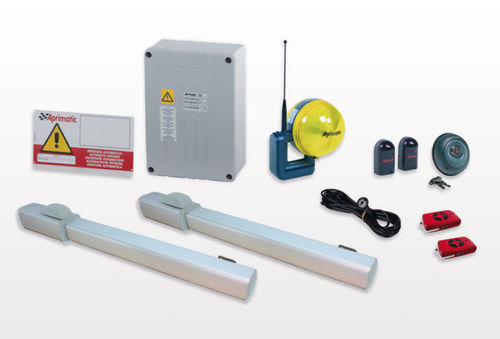

KIT TWENTY 270 SF (code 41012/804)

Overview
Kit for swing gates including hydraulic operators with integrated locking on opening and closing. Designed for condominium and residential swing gates.

Design & features

• Simple and linear design compatible with various gate styles.
• Adjustable soft-closing on closing (set via control unit) for quiet approach of the leaves without mechanical stress.
• Emergency manual release located under the top cover.
• Front hitch uniball threaded 20 mm (compatible with previous ZT44 range) to compensate mounting tolerances.
• Robust and flexible pillar mounting with rear flange and articulated aluminium fork.

Contents (table)

• 41012/003 | Operator TWENTY 270 C | 2 pcs
• 41628/001 | BA230 control unit (with receiver 433.92 MHz) | 1 pc
• 41905/004 | TM4 - 433.92 MHz four-channel transmitter | 2 pcs
• 41929/003 | KIT antenna 433.92 MHz for ET2N-ET20N | 1 pc
• 41840/006 | ET2N - 24 V LED flashing light | 1 pc
• 41812/008 | ER12-24V - Pair of photocells | 1 pc
• 41830/007 | PC12E - Wall-mounted key-operated switch | 1 pc
• Aprimatic signal panel | 1 pc

Technical specifications

• Product code: 41012/804
• Model: TWENTY 270 SF (hydraulic swing operator kit)
• Intended use: condominium / residential swing gates
• Includes hydraulic operators, control unit with integrated receiver, remote transmitters, antenna kit, flashing light, photocells, key-operated switch and signal panel
• Soft-closing adjustable via control unit to reduce mechanical stress and noise
• Emergency manual release under top cover
• Front hitch uniball threaded 20 mm for tolerance compensation
• Pillar mounting with rear aluminium fork flange for robust and flexible installation
