Swing gate automation AP 350

swing-arm

Overview
Kit for swing gates up to 350 kg per leaf. Residential use, with electromechanical arm operator.

• Made in Italy.
• Resistant to high and low temperature.
• Simple installation with brackets secured to the gate.
• Possibility to create single or double wing systems.
• Unit control with microprocessor and 433.92 MHz receiver; easy setting.
• Irreversible operator with key to lock and unlock.

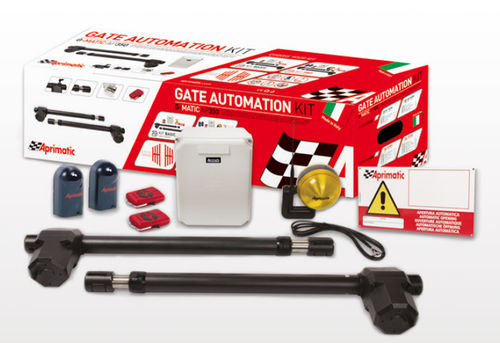

Contents (table)
ITEM NUMBER — DESCRIPTION — Pcs.
41035/001 — Left swing gate operator — 1
41035/002 — Right swing gate operator — 1
41628/001 — BA230 control unit (with receiver 433.92 MHz) — 1
41905/004 — TM4 433.92 MHz four channel transmitter — 2
41929/003 — Antenna KIT 433.92 MHz for ET2N-ET20N — 1
41840/006 — ET2N - 24 V LED flashing light — 1
41812/008 — ER 12-24V Pair of photocells — 1
Aprimatic signal panel — included

Compliance
Complies with current safety standards regarding obstacle detection and inversion of movement in accordance with EN12453 and EN12445 (product certified under ideal installation conditions).

Technical specifications

• Suitable for swing gates up to 350 kg per leaf.
• Electromechanical arm operator for residential use.
• Control: microprocessor-based unit with integrated 433.92 MHz receiver.
• Remote: TM4 433.92 MHz four-channel transmitters (quantity included in kit).
• Accessories included: antenna kit for radio receiver, 24 V LED flashing light, pair of photocells, Aprimatic signal panel.
• Irreversible operator with manual key lock/unlock function.
• Installation: brackets secured to the gate; supports single or double wing configurations.
• Operating temperature: resistant to both high and low temperatures.
• Standards: EN12453, EN12445 (certified under ideal installation conditions).
