Swing gate automation TWENTY 270 B

gateswing

Description
Complete automation kit for swing gates, featuring hydraulic operators with locking on both opening and closing. Designed for condominium/residential applications where silent, controlled movements and integrated safety accessories are required.

Product code
41012/800

Design
Simple, linear design that integrates aesthetically with a wide range of gate styles.

Operation
The adjustable closing slowdown (set via the control unit) ensures a soft, silent approach of the wings, reducing mechanical stress on the structure.

Additional details

• Emergency release system located under the top cover
• Front hitch: uniball threaded 20 mm to compensate mounting tolerances
• Robust and adaptable pillar mounting via rear flange with articulated aluminium fork

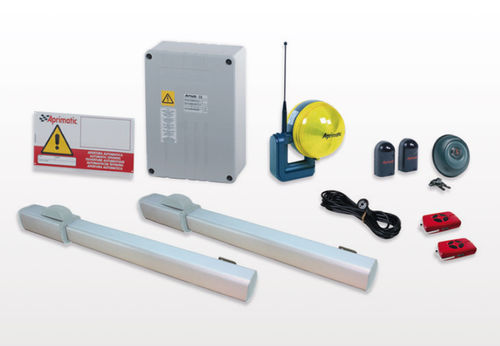

Kit contents (table)
ITEM NUMBER | DESCRIPTION | Pcs.
41012/001 | Operator TWENTY 270 B | 2
41628/001 | BA230 control unit (with receiver 433.92 MHz) | 1
41905/004 | TM4 - 433.92 MHz four-channel transmitter | 2
41929/003 | KIT antenna 433.92 MHz for ET2N-ET20N | 1
41840/006 | ET2N - 24 V LED flashing light | 1
41812/008 | ER12-24V - Pair of photocells | 1
41830/007 | PC12E - Wall-mounted key-operated switch | 1
- | Aprimatic signal panel | 1

Caractéristiques / spécifications techniques

• Type: Swing gate automation kit with hydraulic operators
• Model: Twenty 270 B
• Intended use: Condominium / residential swing gates
• Operator feature: Hydraulic operator with locking on opening and closing
• Adjustable closing slowdown via control unit for soft, silent wing approach
• Emergency release: Under top cover
• Hitch: Front uniball threaded 20 mm
• Mounting: Rear flange with articulated aluminium fork for pillar mounting
• Control unit (included): BA230 with 433.92 MHz receiver
• Remote transmitters (included): TM4, 433.92 MHz four-channel
• Safety/accessories included: LED flashing light (ET2N 24 V), photocells (ER12-24V), key-operated switch (PC12E), antenna kit
