Fencing with panels RECINTHA® N/L

welded meshgardencommercial

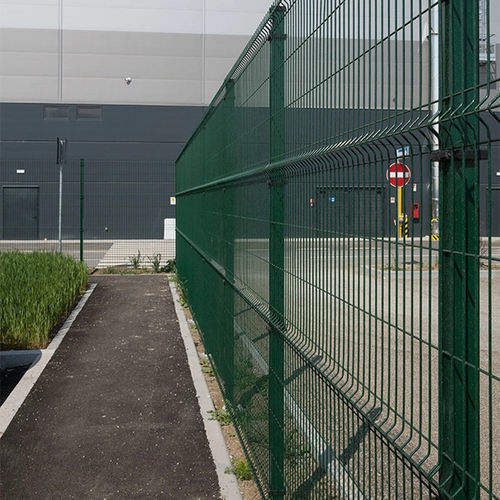

Elegant and lightweight, RECINTHA® N/L fencing is formed of “V” shaped panels that gives a pleasing appearance to the perimeter system of the property. Thanks to its modular structure and patented joint system, the fencing is especially strong, highly adaptable and quick and easy to assemble: qualities that make it particularly suitable for enclosing large areas. RECINTHA® N/L is available in the classic version with a 60×60 mm square post or with a 40 mm diameter round post. Thanks to the wide choice of colours available on request, the fencing can be adapted to different environments, creating a perfect balance between functionality and visual appeal. TECHNICAL SPECIFICATIONS Dimensions Mesh size 50×200 mm Round bar diameter 5 mm Colours RAL 6005 green, other RAL colours available on request Fixing system MP universal clamp for square post (International Patent) Crab-type clamp for round post Gates Single, double or sliding leaf gates APPLICATIONS Industrial construction Residential centres Villas Public buildings Photovoltaic installations PRODUCT SPECIFICATIONS Electrowelded mesh panels made of 5 mm nominal diameter steel rods with horizontal reinforcement ribs. Mesh size 200 x 50 mm. See table below for the width and height of the panel. Centre-to-centre distances: square post 2010/2065 and 2510/2565 mm; round post 2015/2045 and 2515/2545 mm. Installation with universal MP or crab-type clips.
