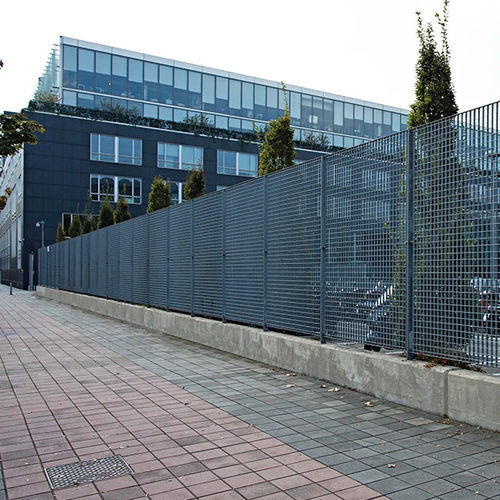

Welded mesh fence PLEIONE®

for green spacesfor public spacesresidential

PLEIONE® is the solid, hard-wearing fencing that combines the traditional features of grating solutions with a refined design involving small square mesh that makes it more stylish. The panels are suitable for a variety of uses in a wide range of contexts, from residential to industrial, and are combined with the flat bar post in sizes 60×7 mm or 80×8 mm, to guarantee stability and durability. TECHNICAL SPECIFICATIONS Dimensions Mesh size 62×66 mm Vertical plates 25×2 mm Horizontal round bars 4.5 mm Material UNI EN 10025 S235JR steel Coating EN ISO 1461 hot-dip galvanisation Polyester coating Colours RAL 6005 green, other RAL colours available on request Fixing system TDE M10x30 stainless steel bolt TTQST M10x30 stainless steel security bolt Posts 60×7 – 80×8 flat bar posts to be bolted or embedded Gates Single, double or sliding leaf gates APPLICATIONS Industrial plants Residential areas Commercial areas Public buildings PRODUCT SPECIFICATIONS The PLEIONE® electrowelded grating fence consists of modular monolithic panels, unwelded or side by side, with height of … mm, width 1992 mm, mesh size 62×66 mm with 25×2 mm vertical flat bars (centre distance 62 mm) and 4.5 mm diameter horizontal round bars (centre distance 66 mm). The 25×4 mm flat bar horizontal frame elements are bent at the ends for a length of 40 mm and have a 12×16 mm slot. Frames electrowelded to vertical profiles without added material. Post centre distance: 2000 mm.
