Welded mesh fence DEFENDER HD PLUS

for sports fieldsfor construction sitefor public spaces

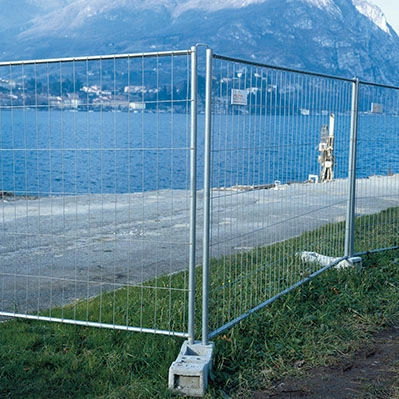

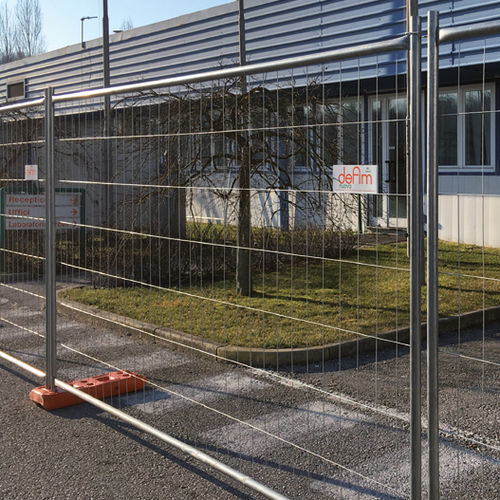

It is the ideal solution to protect construction sites, special events areas and areas where temporary demarcation is necessary. The fixing system used between the horizontal and vertical tubes ensures high standards of strength and durability. The length of the fencing, 3232 mm, was chosen during the design phase to ensure ease of transport. The system complies with EEC Directive 92/57, Legislative Decree 494/96 and Legislative Decree 528/99. APPLICATIONS Construction sites Rapid storage Areas of work in progress Sports events and events in general Set-ups PRODUCT SPECIFICATIONS The Defender HD PLUS fencing for the temporary securing of sites consists of a pre-galvanised tubular frame with 40 mm vertical and 28 mm horizontal profiles. The mesh, lightly welded to the frame to avoid potential injuries, consists of horizontal wires with a diameter of 2.9 mm placed at a centre distance of 248.2 mm and vertical wires with a diameter of 2.2 mm at a centre distance of 110 mm, galvanised in accordance with UNI EN 10244-2. The concrete base measures 600x235x130 and has 8 holes for housing the panel support profile.
