Welded mesh fence RECINTHA® N/L YOUNG

gardencommercialindustrial

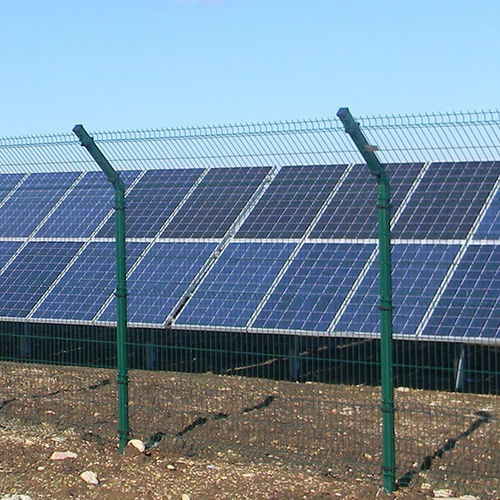

RECINTHA® N/L YOUNG fencing has the same design as the basic model but in a lighter version to adapt to large areas, combining both functional and economic aspects. The V-shaped panels create an aesthetically pleasing enclosure around the property, and the 2500 mm centre-to-centre distances and its light appearance mean it can fit harmoniously into various contexts with elegance and discretion. The modular structure and patented clip make this fencing strong, highly adaptable and quick and easy to assemble. It is available in the classic version with a 60×60 mm square post as well as with a 40 mm diameter round post in a RAL 6005 green colour to blend in with the surrounding vegetation. TECHNICAL SPECIFICATIONS Dimensions Mesh size 59.5×200 mm Vertical round bar diameter 4 mm Horizontal round bar diameter 5 mm Colours RAL 6005 green Fixing system MP universal clamp for square post (International Patent) Crab-type clamp for round post Gates Single, double or sliding leaf gates APPLICATIONS Industrial construction Residential centres Villas Public buildings Photovoltaic installations PRODUCT SPECIFICATIONS Electrowelded mesh panels made of 4 mm nominal Ø vertical steel rods with 5 mm Ø horizontal reinforcement ribs. Mesh size 200 x 59.5 mm. See table below for the width and height of the panel. Centre-to-centre distances: square post 2510/2565 mm; round post 2515/2545 mm. Installation with universal MP or crab-type clips.
