Welded mesh fence STEROPE®

metal gratingresidentialcommercial

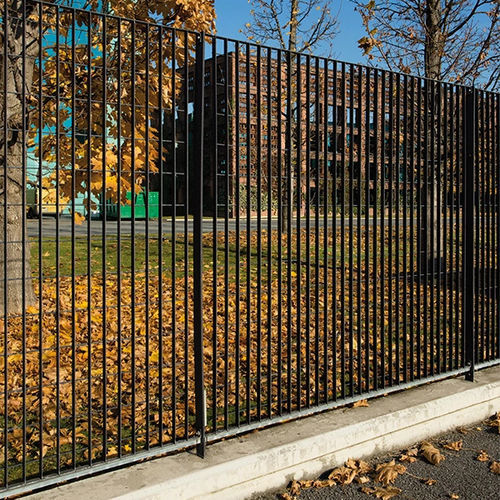

STEROPE® is the classic Defim Orsogril branded grating fence, combining elegance and aesthetics with solidity and transparency. These characteristics are ensured by the rectangular mesh that makes the system versatile and suitable for a variety of uses. The Sterope® panels are supported by the traditional flat bar post, available in sizes 60×7 mm or 80×8 mm, according to the different heights required. The system guarantees a stable and durable structure. TECHNICAL SPECIFICATIONS Dimensions Mesh size 62×132 mm Vertical plates 25×2 mm Horizontal round bars 4.5 mm Colours RAL 6005 green, other RAL colours available on request Floor stands TDE M10x30 stainless steel bolt TTQST M10x30 stainless steel security bolt Posts 60×7 – 80×8 flat bar posts to be bolted or embedded Gates Single, double or sliding leaf gates APPLICATIONS Industrial areas Residential areas Commercial areas Parking areas School buildings PRODUCT SPECIFICATIONS The STEROPE® electrowelded grating fence consists of modular monolithic panels, unwelded or side by side, with height of … mm, width 1992 mm, mesh size 62×132 mm with 25×2 mm vertical flat bars (centre distance 62 mm) and 4.5 mm diameter horizontal round bars (centre distance 132 mm). The 25×4 mm flat bar horizontal frame elements are bent at the ends for a length of 40 mm and have a 12×16 mm slot. Frames electrowelded to vertical profiles without added material. Post centre distance: 2000 mm
