Louvered fence TALIA® VENTUS

gardenfor public spacesindustrial

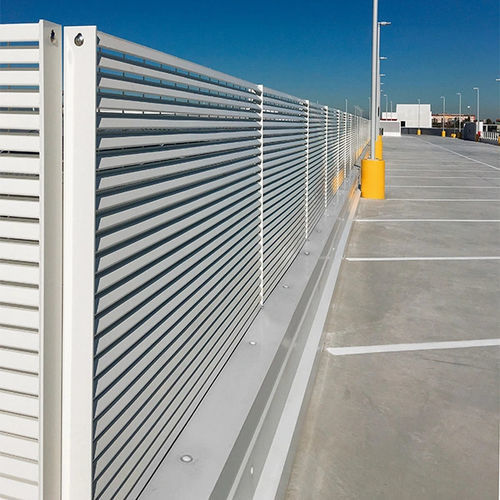

TALIA® VENTUS is the fence that combines security with elegance and privacy. The shape of the louvers is such as to allow air through while keeping ‘your world’ out of sight of prying eyes. With its sophisticated design, it represents an iconic product of Italian tradition, where every detail is taken care of to offer quality and beauty. TALIA® VENTUS is the only certified windbreaker louvered fence that integrates the post with the panel, making installation quicker and easier. It is available with either a hot-dip galvanised or a galvanised and painted finish for application in any project. TECHNICAL SPECIFICATIONS Dimensions Mesh size 46×132 mm TALIA® horizontal profiles Vertical round bars 4 mm Colours RAL 6005 green, other RAL colours available on request Fixing system TTQST M10x30 stainless steel security bolt Posts 80×8 mm flat bar post Gates Single, double or sliding leaf gates APPLICATIONS Luxury houses Technical areas Public building PRODUCT SPECIFICATIONS TALIA® VENTUS fencing consists of modular monolithic panels, 46×132 mm mesh, special section horizontal profiles (centre distance 46 mm), and 4 mm diameter vertical connection round bars (centre distance 132 mm). 80×8 mm flat bar posts welded at the ends, making up a monoblock ready for installation, with pre-drilled holes to fix consecutive panels. Centre distance: 1650-2000 mm. Finish: polyester powder coating on hot-dip galvanised material according to UNI EN ISO 1461.
