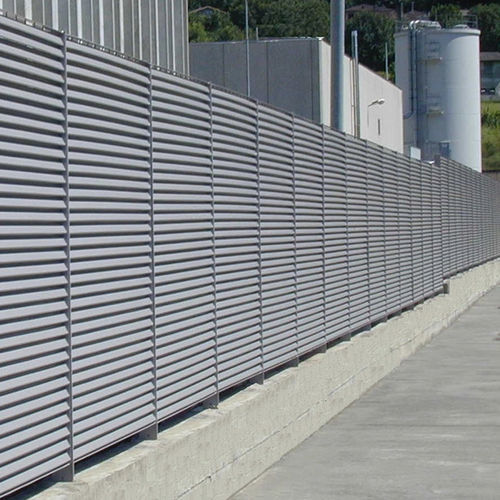

Screening fence TALIA® VENTUS

louveredgardenfor public spaces

TALIA® VENTUS SCREEN is the ideal solution for those seeking the highest level of privacy without compromising aesthetics. The more pronounced profile of the slats compared to the standard TALIA® version reduces visual permeability, while maintaining the high standards of quality and design that define the entire TALIA® range, characterised by high-quality materials and a distinctive and typically Italian style. The TALIA Ventus screen is also windbreaker certified, like all products in the line, thanks to the smart integration of the post and panel that allows for quick and easy installation. TECHNICAL SPECIFICATIONS Dimensions Mesh size 46×132 mm Talia® Screen horizontal profiles Vertical round bars Ø 4 mm Colours RAL 6005 green, other RAL colours available on request Fixing system TTQST M10x30 stainless steel security bolt Posts 80×8 mm flat bar post Gates Single, double or sliding leaf gates APPLICATIONS Luxury houses Technical areas Public buildings PRODUCT SPECIFICATIONS TALIA® VENTUS SCREEN louvered fencing consists of modular monolithic panels, 46×132 mm mesh, special section horizontal profiles (centre distance 46 mm), and 4 mm diameter round vertical connection round bars (centre distance 132 mm). 80×8 mm flat bar posts welded at the ends, making up a monoblock ready for installation, with pre-drilled holes to fix consecutive panels. Centre distance: 1650-2000 mm. Finish: polyester powder coating on hot-dip galvanised material according to UNI EN ISO 1461.
