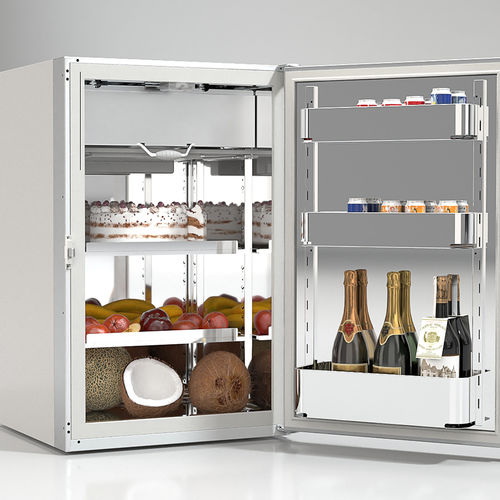

MODEL FR160AC Capacity 160Lt
Refrigerator (+0°C +15°C) with freezer compartment ( -12°C)
and remote compressor.
Internal walls in stainless steel 304BA, external front and door in
The refrigerating unit with forced air-cooled or sea water-cooled
compressor 12/24Vdc or 110Vac 60Hz or 220Vac 50 Hz.
Customizable with several options.
FEATURES CABINET FR160AC
- W540xD587xH830 capacity of the fridge 160Lt;
- Range of temperature from 0°C to +15°C;
- Ice compartment -12°C;
- Ice compartment dimensions W360xD320xH100;
- External plasticized galvanized metal sheet;
- Internal walls in polished stainless steel 304BA;
- External front and door in stainless steel 316SB;
- Polyurethane foam insulation thickness 45mm;
- Condensate drainage connected by ¼ coupling;
- No. 02 stainless steel shelves adjustable in high;
- No. 03 stainless steel bottle holders;
- Gas expansion by capillary pipe;
- Mechanical thermostat for temperature control;
- External compressor (pipe lenght 2,5m);
- Internal led light;
- Do not place the refrigerator directly to atmospheric agents,
but cover it with proper protections.
- DOOR SLIDING KIT
Sliding mechanism which replaces the handle in the case
of a fully built-in installation with an exterior cabinet door.
- FIXING KIT
Special stainless steel frame which allows to
easily fix the cupboard to the forniture.
- SLIDING DRAWERS
Special drawers complete with racks and locking device
No.Max drawers: 02
Net using space drawers:
1 drawer W395xD390xH190
2 drawer W395xD390xH170
3 drawer W395xD390xH170
