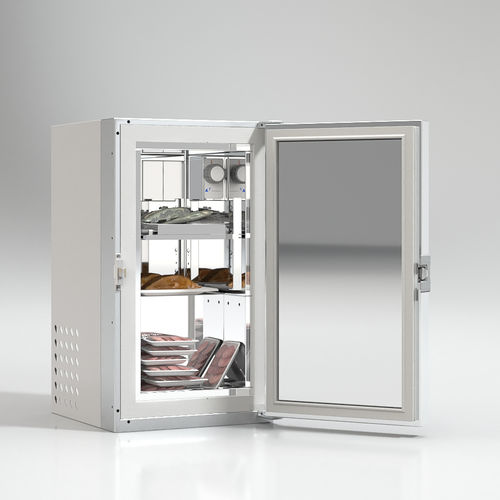

With the same dimensions of commercial Ice Maker, Series 50 is the perfect solution to substitute this item, and it gives the opportunity to have a small fridge or freezer for daily use.
Freezer (-10°C -20°C) with internal compressor.
Internal walls in stainless steel 304BA, external front and door in
316SB.
The refrigerating unit with forced air-cooled compressor
12/24Vdc or 110Vac 60Hz or 220Vac 50 Hz.
Customizable with several options.
- W350xD432xH610 capacity of the freezer 25Lt;
- Range of temperature from -10°C to -20°C;
- External plasticized galvanized metal sheet;
- Internal walls in polished stainless steel 304BA;
- External front and door in stainless steel 316SB;
- Polyurethane foam insulation thickness 60mm;
- Condensate drainage connected by ¼ coupling;
- No. 01 stainless steel shelves adjustable in high;
- Gas expansion by capillary pipe;
- Mechanical thermostat for temperature control;
- Internal compressor forced air cooled;
- Do not place the refrigerator directly to atmospheric agents,
but cover it with proper protections.
Sliding mechanism which replaces the handle in the case
of a fully built-in installation with an exterior cabinet door.
Special stainless steel frame which allows to
easily fix the cupboard to the forniture.
In order to keep the internal temperature under
control and have real time indications of fridge
functionality.
The refrigerating unit is air cooled.
It is essential to provide good ventilation to the refrigerating unit.
The correct working of the system is guaranteed if there is at least
100m³/h airflow to the compressor. We suggest air opening at
least 400cm² for suction and at least 400cm² for warm air exit.
