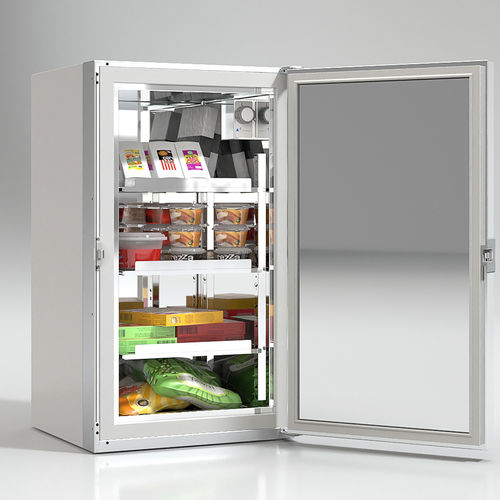

Thought for using the space height-wise, this model has a great loading capacity in spite of its reduced dimensions. It is available with separate or internal compressor, it suits any kind of customization.
Freezer (-10°C -20°C) with remote compressor.
Internal walls in stainless steel 304BA, external front and door in
The refrigerating unit with forced air-cooled or sea water-cooled
compressor 12/24Vdc or 110Vac 60Hz or 220Vac 50 Hz.
Customizable with several options.
- W480xD537xH830 capacity of the freezer 90Lt;
- Range of temperature from -10°C to -20°C;
- External plasticized galvanized metal sheet;
- Internal walls in polished stainless steel 304BA;
- External front and door in stainless steel 316SB;
- Polyurethane foam insulation thickness 60mm;
- Condensate drainage connected by ¼ coupling;
- No. 03 stainless steel shelves adjustable in high;
- Gas expansion by capillary pipe;
- Mechanical thermostat for temperature control;
- External compressor (pipe lenght 2,5m);
- Do not place the refrigerator directly to atmospheric agents,
but cover it with proper protections.
Sliding mechanism which replaces the handle in the case
of a fully built-in installation with an exterior cabinet door.
Special stainless steel frame which allows to
easily fix the cupboard to the forniture.
Special drawers complete with racks and locking device
No.Max drawers: 03
Net using space drawers:
1 drawers L305xD335xH310
2 drawers L305xD335xH180
3 drawers L305xD335xH180
Raised stainless steel plate keeps foods out of
condensation water in the bottom of the fridge.
In order to pull out the drawers, is necessary that the door is opened
at least 100°
