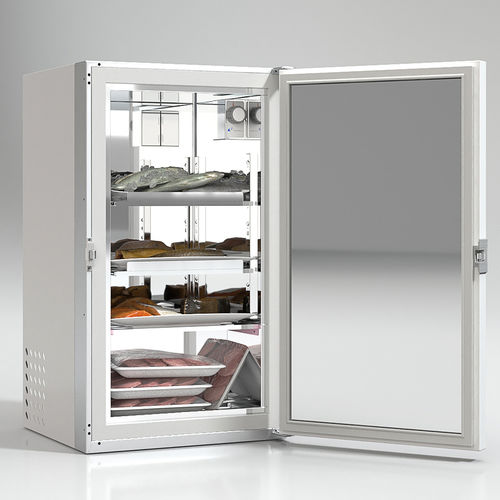

Thought for using the space height-wise, this model has a great loading capacity in spite of its reduced dimensions. It is available with separate or internal compressor, it suits any kind of customization.
Freezer (-10°C -20°C) with internal compressor.
Internal walls in stainless steel 304BA, external front and door in
316SB.
The refrigerating unit with forced air-cooled compressor
12/24Vdc or 110Vac 60Hz or 220Vac 50 Hz.
Customizable with several options.
- W480xD507xH830 capacity of the freezer 75Lt;
- Range of temperature from -10°C to -20°C;
- External plasticized galvanized metal sheet;
- Internal walls in polished stainless steel 304BA;
- External front and door in stainless steel 316SB;
- Polyurethane foam insulation thickness 60mm;
- Condensate drainage connected by ¼ coupling;
- No. 01 fixed stainless steel shelf;
- No. 02 stainless steel shelves adjustable in high;
- Gas expansion by capillary pipe;
- Mechanical thermostat for temperature control;
- Internal compressor forced air cooled;
- Do not place the refrigerator directly to atmospheric agents,
but cover it with proper protections.
Sliding mechanism which replaces the handle in the case
of a fully built-in installation with an exterior cabinet door.
Special stainless steel frame which allows to
easily fix the cupboard to the forniture.
Special drawers complete with racks and locking device
No.Max drawers: 02
Net using space drawers:
1 drawer W305xD335xH310
2 drawer W305xD335xH180
In order to keep the internal temperature under
control and have real time indications of fridge
functionality.
In order to pull out the drawers, is necessary that the door is opened
at least 100°
