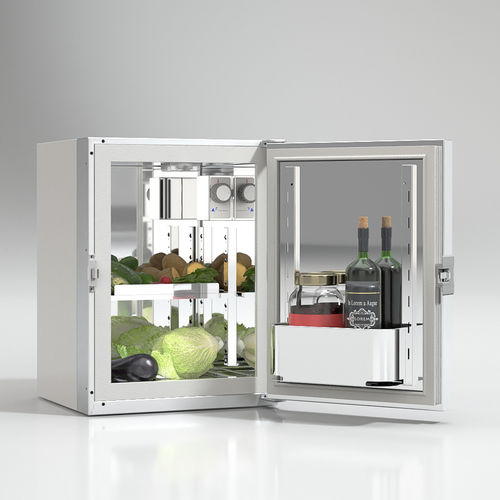

It is the smallest Standard Series model, it has a capacity of only 42Lt, which can be used entirely because shelf and bottle holder can be pulled-out, and the compressor is located externally.
Refrigerator (+0°C +15°C) with remote compressor.
Internal walls in stainless steel 304BA, external front and door in
The refrigerating unit with forced air-cooled or sea water-cooled
compressor 12/24Vdc or 110Vac 60Hz or 220Vac 50 Hz.
Customizable with several options.
- W390xD457xH520 capacity of the fridge 42Lt;
- Range of temperature from 0°C to +15°C;
- External plasticized galvanized metal sheet;
- Internal walls in polished stainless steel 304BA;
- External front and door in stainless steel 316SB;
- Polyurethane foam insulation thickness 45mm;
- Condensate drainage connected by ¼ coupling;
- No. 01 stainless steel shelves adjustable in high;
- No. 01 stainless steel bottle holders;
- Integrated copper tube evaporator;
- Gas expansion by capillary pipe;
- Mechanical thermostat for temperature control;
- External compressor (pipe lenght 2,5m);
- Internal led light;
- Do not place the refrigerator directly to atmospheric agents,
but cover it with proper protections.
Sliding mechanism which replaces the handle in the case
of a fully built-in installation with an exterior cabinet door.
Special stainless steel frame which allows to
easily fix the cupboard to the forniture.
Raised stainless steel plate keeps foods out of
condensation water in the bottom of the fridge.
In order to keep the internal temperature under
control and have real time indications of fridge
