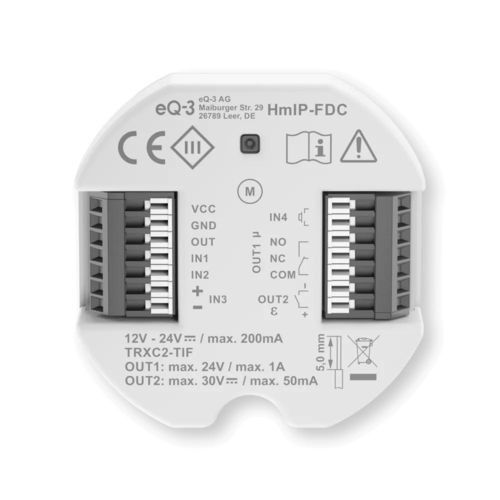

Door control module UNIVERSAL TÜRÖFFNER

for home automation systemflush-mountedIP

Overview

The Homematic IP Flush mounted Door Controller provides intelligent, secure control of electric strikes for modern entrances in residential and commercial buildings. It detects door status and supports configurable Day/Night modes while integrating with existing wiring and the Homematic IP ecosystem.

Key features

• Two flexible inputs for integration of safety detectors or door state sensors.
• Operation via Homematic IP App, push-buttons or wired switches.
• Compact design for quick installation in standard flush-mounted boxes (minimum depth 50 mm).
• Automatic and configurable Day/Night mode switching for access authorization management.

Advanced functions & applications

• Precise door state detection (open/closed, locked/unlocked) for automation and enhanced access control.
• Support for remote opening and scheduled authorizations via Homematic IP automations.
• Expandable with optional accessories (e.g. external power measurement cable) to extend radio range or add consumption monitoring.
• Suitable for apartment buildings, office entrances or intercom systems requiring reliable integration.

Technical specifications

• Reference: 160811A0
• Supply voltage: 12–24 VDC
• Standby power consumption: 60 mW
• Maximum switching power for resistive load: cosφ ≥ 0.95
• Protection type: IP20
• Dimensions (W x H x D): 52 x 52 x 15 mm
• Ambient temperature: -5 to 40 °C
• Weight: 28 g
• Radio frequency bands: 868.0–868.6 MHz and 869.4–869.65 MHz
• Typical open-field radio range: 200 m
• Prerequisite: Homematic IP access point or gateway required for operation.
