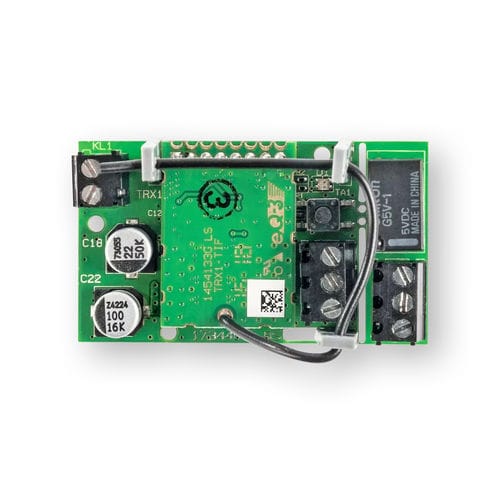

Home automation system control module HMIP-PCBS

lightingfor doorsIP

FLEXIBLE APPLICATION WITHIN THE SMART HOME The switch circuit board can be used in almost all areas of a smart home. It is suitable for switching conventional domestic appliances, lighting installations or garage door drives. Connected devices can be switched on and off comfortably via the Homematic IP app or a remote control. The miniature relay provides a switching capacity of up to 30 V/1 A If the miniature relay is not required it can simply be broken off and only the open collector switching output with 30 V/0.5 A can be used Can be used to extend the range of the radio signal Convenient and individual voice control (e.g. via Amazon Alexa or Google Assistant) The Homematic IP Switch Circuit Board enables the integration of common electrical devices into the Homematic IP smart home system. For retrofitting, the tiny circuit board only needs to be placed in a suitable position of the device housing and has to be connected e.g. with the existing button or signal input. A miniature relay allows switching capacities of up to 30 V/1 A. If the relay is not used, it can easily be broken off from the board. Thus, the size of the circuit board is still reduced and instead the open-collector switching output with 30 V/0.5 A can be used. Once installed, conventional household appliances, light installations, own µC applications or even garage door drives in connection with the Homematic IP Access Point can be switched via Homematic IP app, remote control or wall-mounted push-button. Supply voltage 5 to 25 VDC Current consumption without relay 50 mA max. Current consumption with relay 70 mA max. Relay Changeover contact, 1-pole, ì contact Load type ohmic load
