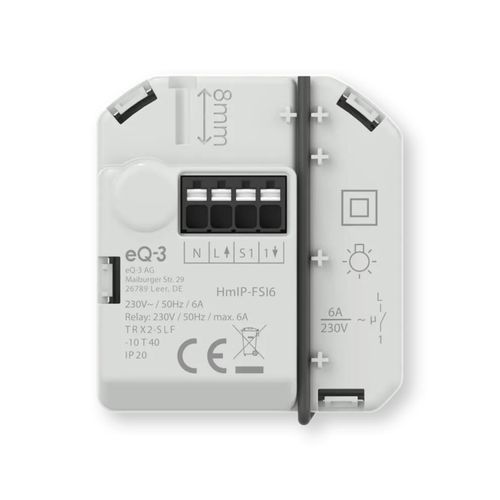

Home automation system switch actuator HMIP-FSI6

built-inflush-mountedhome

Overview
Control lighting and electrical loads intelligently while retaining manual operation via existing switches. The compact flush-mount actuator installs behind existing wall switches and expands control options with the Homematic IP app, remote controls, motion detectors and voice/automation integrations.

Main benefits

• Compact design for retrofitting in flush-mount boxes, even where space is limited.
• Integrated push-button input to continue using existing switches or buttons for manual control.
• Reliable switching of lighting and electrical loads up to 6 A (max switching capacity 1,380 W).
• Low standby consumption and support for time profiles and automations to reduce energy use.
• Wireless integration into Homematic IP systems; Push-to-Pair supported for simplified setup.

Design & installation
The device is installed invisibly behind existing switches or push-buttons in flush-mounted boxes. Connections use screwless terminals suitable for rigid and flexible cable with cross sections from 0.75 to 1.5 mm². The compact housing enables installation even in space-restricted junction or switch boxes. Installation must be carried out according to local electrical regulations by qualified personnel.

Applications

• Intelligent switching of lighting circuits while retaining manual operation via the push-button input.
• Automation of permanently connected loads to reduce standby consumption (e.g. entertainment or home office devices).
• Integration with motion detectors, wall-mounted remotes and app/voice control for presence simulation and comfort scenarios.

Technical specifications

• Model name: HmIP-FSI6
• Item number / Product reference: 162805A0
• EAN: 4047976628056
• Function type: Switch actuator
• Supply voltage: 230 V / 50 Hz
• Switching current (max.): 6 A
• Switching capacity: 1380 W
• Relay: NO contact, 1-pole, µ contact
• Power consumption in standby: 0.16 W
• Cable type / cross section: rigid and flexible cable, 0.75 - 1.5 mm²
• Degree of protection: IP20
• Dimensions (W x H x D): 50 x 44 x 22 mm
• Weight: 28 g
• Ambient temperature: -10 to +40 °C
• Radio frequency: 868.0 - 868.6 MHz / 869.4 - 869.65 MHz
• Typical open area RF range: 210 m
• Connection / pairing: Wireless; Push-to-Pair supported
