Light dimmer module HMIP-UDI

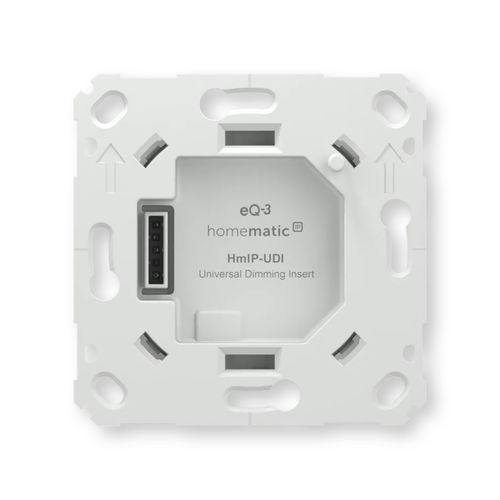

Overview The Homematic IP Universal dimmer insert makes existing lighting installations smart: it is installed discreetly inside the switch box and enables stepless dimming and switching of compatible lamps. Operation requires a compatible dimmer cover (e.g. push-button or motion sensor).

Main functions

• Automatic adaptation to the connected load for optimal dimming behaviour with various dimmable lamps
• Flexible retrofit also in installations without a neutral conductor
• Comfortable dimming and switching via wall button, the Homematic IP app or automations within the smart home system
• Integration of existing switches via an auxiliary input (S1) possible (wiring up to 50 m)

Combination and installation

• The dimmer insert is combined with matching covers (e.g. Universal dimmer cover – push-button or Universal dimmer cover – motion sensor). This allows adapting the switch point to the existing switch design and reusing 55 mm frames.
• Discreet installation in the wall: ideal for smart retrofit in existing buildings.

Application example In a corridor, the Universal dimmer insert combined with a motion sensor cover provides anticipatory regulated lighting: when entering, the lighting switches to the desired brightness automatically; in long corridors an additional motion sensor extends detection for seamless illumination.

Characteristics / Specifications (technical data)

• Short name: HmIP-UDI
• Article number: 162536A1
• EAN: 4047976625369
• Supply voltage: 230 V / 50 Hz
• Power consumption in standby: < 0.3 W
• Max. switching power: 200 VA
• Dimming method: leading-edge and trailing-edge (automatic detection)
• Load type: resistive and capacitive lamp loads (R, C)
• Conductor type / cross-section: solid and stranded cable, 0.75–2.50 mm²
• Protection rating: IP20
• Ambient temperature: –5 to +40 °C
• Function type: Dimmer
• Communication / connection: wireless (integration into the Homematic IP system)
• Special features: retrofit possible even without neutral conductor; automatic load and dimming method detection; auxiliary input (S1) for integration of existing switches
