Building automation system touch screen PLUS

for energy managementmonitoringfor home automation system

Overview

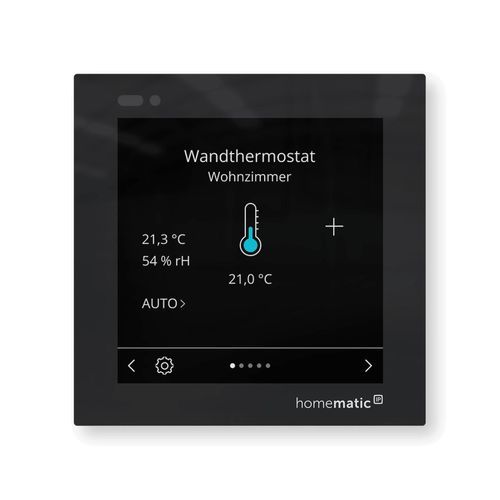

Control the indoor climate, lighting, roller shutters and access systems centrally in professional or residential projects via a flush-mounted glass touch display. The device shows measured room temperatures, humidity and window/door status on a high-resolution colour screen for clear situational awareness.

Key features

• Centralised control of lighting, shading, room climate and access via a wireless high-quality touch display
• Individually configurable display pages with flexible tile layouts (1/2/4 tiles) for quick access to priority functions
• Operation by touch or contact-free using an integrated proximity sensor and Quick Action gesture
• Monitoring of temperatures, relative humidity and window/door status; control of up to ten rooms

Precise climate control
Adjust and monitor room temperatures and humidity centrally. The Glass Display – plus supports temperature control for multiple rooms and presents current measurements and window status on the colour display to support energy management and comfort settings.

Controlling lights and shutters
Stepless dimming, light colour adjustment and precise positioning of roller shutters and blinds are handled via the smooth glass surface and clear tile layout for efficient operation and installation in commercial or residential B2B projects.

Convenient front-door opening
Integrate door opener drives and lock actuators to operate entry functions from the display (e.g. unlock the front door, trigger welcome scenes) for streamlined visitor management and commissioning.

Custom layout
Create up to eleven customisable screen pages with one, two or four sections to group key controls by room, floor or function according to project requirements.

Contact-free Quick Action
Enable contact-free operation by triggering predefined actions (for example, switch on a ceiling light) with a hand gesture in front of the display—useful for hygienic or fast interactions in shared spaces.

Applications / Use cases

• Integrated control centre for room climate, lighting, shading and access in residential and light commercial projects
• Display and monitoring of temperature, humidity and window/door status for energy and comfort management
• Triggering of scenes, grouped actions and automations from a central position for installers and system integrators

Technical specifications

• Product name (short): HmIP-WGD-PL
• Item number: 161937A0
• EAN Code: 4047976619375
• Supply voltage: 230 V / 50 Hz
• Current consumption: 270 mA (max.)
• Power consumption in standby: < 0.5 W
• Cable type and cross section: Rigid and flexible cable, 0.75–2.5 mm²
• Degree of protection: IP20
• Dimensions (W x H x D): 96 x 96 x 43 mm
• Ambient temperature: -5 to +40 °C
• Radio frequency: 868.0–868.6 MHz / 869.4–869.65 MHz
• Typical open area RF range: 190 m
• Function type: Display
• Connection: Wireless
• Colour: black
