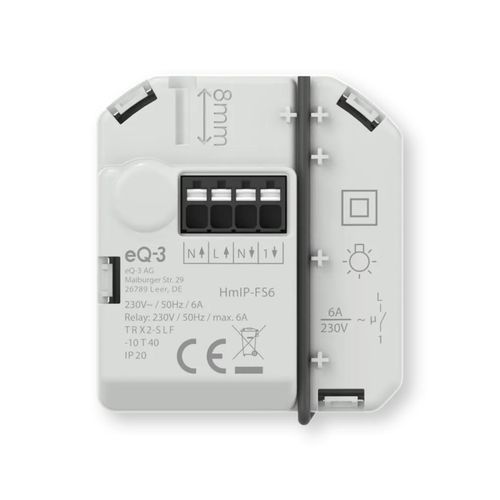

Home automation system switch actuator HMIP-FS6

flush-mountedhomeoutdoor

Product overview
The compact flush-mount switch actuator HmIP-FS6 integrates lamps and electrical loads into Homematic IP for discreet, smart switching. Designed for installation inside standard flush-mount boxes, it supports control via the Homematic IP app, wireless wall remotes, motion detectors and automated routines.

Key features

• Very compact housing for installation in standard flush-mount boxes where space is limited
• Direct switching of lights and electrical loads within the smart home system
• Front terminals for fast, clear wiring during installation
• Very low standby power consumption
• Enables automation: schedules, presence simulation and integration with motion/brightness sensors and other Homematic IP devices

Applications

• Retrofit existing switch installations to smart control without visible devices (actuator hides behind cover or inside junction box)
• Automated indoor and outdoor lighting in combination with motion/brightness sensors
• Reduce standby consumption by automatic switching off of permanently connected loads via schedules/routines
• Manual control possible via wireless wall remotes independently of existing wiring

Installation and operation notes

• Intended for installation in switch boxes according to DIN 49073-1 and junction boxes according to DIN 60670-1
• Terminals accept rigid and flexible cables 0.75–1.5 mm²
• Observe the maximum switching capacity and permissible load types when connecting devices

Documentation

• Operating manual and product datasheet available for the HmIP-FS6 (see product downloads)

Technical specifications

• Product name (short): HmIP-FS6
• Item number: 162800A0
• EAN: 4047976628001
• Supply voltage: 230 V / 50 Hz
• Current consumption: 6 A (max.)
• Power consumption in standby: 0.16 W
• Switching current: 6 A
• Switching capacity: 1380 W
• Relay: NO contact, 1-pole, µ contact
• Cable type / cross section: Rigid and flexible cable, 0.75 - 1.5 mm²
• Degree of protection: IP20
• Dimensions (W x H x D): 50 x 44 x 22 mm
• Ambient temperature: -10 to +40 °C
• Weight: 28 g
• Radio frequency: 868.0 - 868.6 MHz / 869.4 - 869.65 MHz
• Typical open area RF range: 190 m
• Function type: Switch actuator
• Connection: Wireless (Homematic IP)
