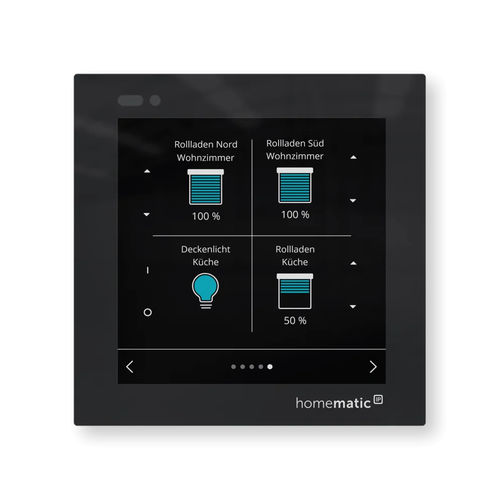

Multifunction home automation system touch screen HMIP-WGD

for home automation systemfor building automation systemsmonitoring

Overview
Control lighting, roller shutters, blinds and view weather and system data centrally via an elegant wall-mounted glass touchscreen. The HmIP-WGD combines intuitive touch operation with a contact-free Quick Action and a proximity sensor for convenient local control of a smart building.

Key features

• Configurable touchscreen with up to six control pages and flexible division into one, two or four tiles.
• Direct control of lighting, roller shutters and blinds by touch or contact-free via Quick Action.
• Intelligent proximity sensor that automatically activates the display on approach.
• Display of weather and environmental data from outdoor sensors or the Homematic IP system.
• High-resolution colour display with tile layout for clear visual orientation.

Quick Action (contact-free)
Trigger a preconfigured action without touching the screen (for example, wave your hand in front of the display to switch on lights when entering a room). This enables fast, hygienic and intuitive interactions at entrances or high-traffic areas.

Custom layout
Configure up to six pages and arrange functions into groups, scenarios or quick actions. Each page can be divided into 1, 2 or 4 tiles to prioritise the most relevant controls for each zone or room.

Weather & sensor data
The display shows current weather information and environmental values (temperature, humidity, weather status) supplied by outdoor sensors or the Homematic IP system to support operational decisions at a glance.

Applications / Examples
Central control of individual devices, groups, scenes and automations from one wall-mounted point. Typical uses include combined lighting and shading scenes, rapid activation of presence-based functions and local triggering of building automations.

Technical specifications

• Product name: Glass display
• Model: HmIP-WGD
• Product reference / Item Number: 161918A0
• EAN: 4047976619184
• Supply voltage: 230 V / 50 Hz
• Current consumption: 270 mA (max.)
• Power consumption in standby: < 0.5 W
• Cable type and cross section: Rigid and flexible cable, 0.75–2.5 mm²
• Degree of protection: IP20
• Dimensions (W x H x D): 96 x 96 x 43 mm
• Ambient temperature: -5 to +40 °C
• Weight: 160 g
• Radio frequency: 868.0–868.6 MHz / 869.4–869.65 MHz
• Typical open area RF range: 190 m
• Function type: Display
• Connection: Wireless
• Colour: black
