thermal insulation / extruded polystyrene / panel / lightweight



  • Type:


  • Composition:

    extruded polystyrene

  • Format:


  • Options:

    lightweight, water-repellent

  • Thickness:

    30 mm


The system solution for efficient bathtub construction.

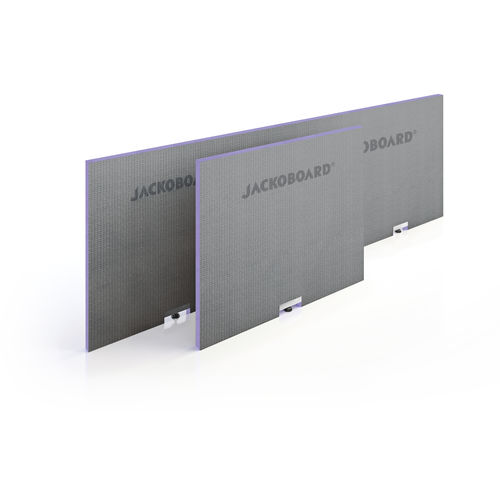

JACKOBOARD® Wabo tub construction elements are specially designed for the easy and time-saving cladding of bathtubs. They are easy to work with and their four different formats and height-adjustable feet facilitate the cladding of all standard bathtub models. With their water-repellent extruded polystyrene (XPS) foam core and special coating on both sides, they can be finished directly with tiles, plaster or filler compound.
Product characteristics JACKOBOARD® Wabo:
Made of extruded polystyrene foam
With special coating on both sides
Low weight, approx. 3–6 kg/m2
Thickness: 30 mm
Formats: (UK 2100 x 600, 1850 x 600, 850 x 600)
Excellent thermal insulation properties with λD = 0.035 W/(m·K)
High compressive strength > 300 kPa
For rooms subject to high moisture loads

Benefits JACKOBOARD® Wabo:
Easy to work with
Can be trimmed to size
Tiles, filler or plaster can be applied directly
With height-adjustable feet
Easy to install

Ideal application:
For fast, easy cladding of all standard bathtub models and for further processing and finishing directly with tiles, plaster or filler compound.
