Power socket FR-12
wall-mountedrecessedflush

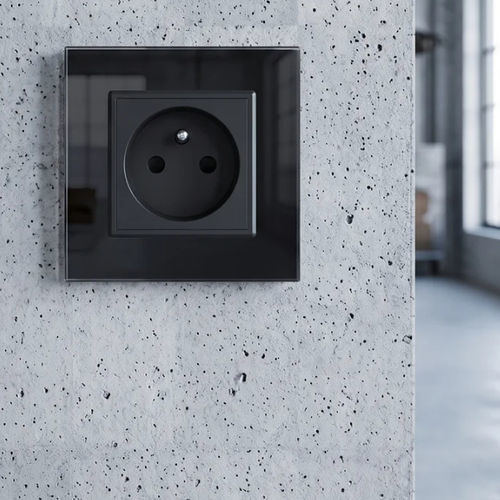

Power socket - FR-12 - LightON - wall-mounted / recessed / flush
Power socket - FR-12 - LightON - wall-mounted / recessed / flush
Power socket - FR-12 - LightON - wall-mounted / recessed / flush - image - 2
Power socket - FR-12 - LightON - wall-mounted / recessed / flush - image - 3
Power socket - FR-12 - LightON - wall-mounted / recessed / flush - image - 4
Power socket - FR-12 - LightON - wall-mounted / recessed / flush - image - 5
Power socket - FR-12 - LightON - wall-mounted / recessed / flush - image - 6
Add to favorites
Compare this product
Go to the LightON website for more information

Characteristics

Type
power
Installation
wall-mounted
Mounting
recessed, flush
Applications
commercial
Shape
round, square
Color
white
Other characteristics
with child protection

Description

DescriptionFlush-mounted earthed power socket mechanism designed for French installations. Rated at 16 A with Type E earthing, this compact module is suitable for residential and light commercial electrical systems. The mechanism fits standard back boxes and integrates a child protection system for safer everyday use.

Product highlights
  • Standard 16 A flush-mounted power socket mechanism
  • Compliant with French (Type E) outlets
  • Type E earthing for secure grounding
  • Integrated child protection shutters
  • Quick fit on existing wiring with screw terminals


Installation & compatibility
  • Compatible with round or square back boxes ≥ 40 mm
  • Suitable for horizontal or vertical mounting
  • For standard domestic or commercial electrical installations
  • Connections: live / neutral / earth via screw terminals


Pair it with
  • Gloss or matt SR tempered glass faceplate (sold separately)
  • Metal mounting frame for 1 to 4 gang combinations


What's in the box
  • Earthed socket mechanism - type E, white
  • Installation guide
  • Glass faceplate and metal mounting frame sold separately


Technical specifications
  • Manufacturer: Livolo
  • Reference: FR-12
  • Weight: 0.058 kg
  • Dimensions: 45 x 45 x 30 mm
  • Type: Flush-mounted power socket mechanism
  • Socket type: France (Type E)
  • Rated current: 16 A
  • Operating temperature: -10°C to +40°C
  • Permissible humidity: Up to 95%
  • Connection: Screw terminals
  • Cable cross-section: 1.5 to 2.5 mm²
  • Stripping length: 11 mm
  • Material: Plastic
  • Child protection: Yes
  • Earthing: Yes
  • Certification: CE & RoHS
  • Category: Power socket
  • Function: Type E
