Power socket EU-USBC-11USBwall-mountedflush
Add to favorites
Compare this product
Characteristics
- Type
- power, USB
- Installation
- wall-mounted
- Mounting
- flush
- Style
- contemporary
- Applications
- commercial
- Shape
- square
- Finish
- matte, high-gloss
- Color
- white
- Other characteristics
- Schuko, with child protection
Description
Product description

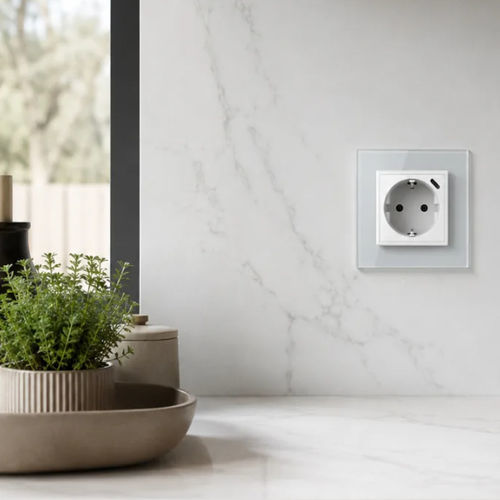

Optimize the powering and charging of devices with this 16A earthed Schuko power socket featuring an integrated USB-C charger. The unit combines a standard Type F mains outlet and an 18 W USB-C charging port in a single flush-mounted mechanism, allowing direct charging of smartphones, tablets and USB-C accessories without an external adapter. Designed for residential and commercial electrical installations, it fits standard back boxes and accepts a glass faceplate for a refined finish.
Product highlights
Installation & compatibility
Pair it with
What's in the box
Technical specifications
Optimize the powering and charging of devices with this 16A earthed Schuko power socket featuring an integrated USB-C charger. The unit combines a standard Type F mains outlet and an 18 W USB-C charging port in a single flush-mounted mechanism, allowing direct charging of smartphones, tablets and USB-C accessories without an external adapter. Designed for residential and commercial electrical installations, it fits standard back boxes and accepts a glass faceplate for a refined finish.
Product highlights
- 16A mains Schuko socket with integrated USB-C charger
- Fast charging via USB-C up to 18 W
- Charge smartphones, tablets and USB-C accessories directly
- Saves space and reduces the need for external adapters
- Built-in child protection shutter
- Simple installation on standard electrical wiring
- Compatible with glass faceplate for premium appearance (faceplate sold separately)
Installation & compatibility
- Compatible with round or square back boxes ≥ 40 mm
- Suitable for horizontal or vertical mounting
- For use on a standard low-voltage electrical installation
- Live / neutral / earth connections (screw terminals)
- Compatible devices: Smartphones, Tablets, USB-C accessories, Low-power electronic devices
Pair it with
- Gloss or matt SR tempered glass faceplate and metal mounting frame
- Frame combinations from 1 gang to 4 gangs
What's in the box
- Schuko earthed socket with integrated USB-C charger mechanism — Type F, white
- Installation guide
- Glass faceplate and metal mounting frame sold separately
Technical specifications
- Manufacturer: Livolo
- Reference: EU-USBC-11
- Dimensions: 45 × 45 × 38 mm
- Type: Power socket with USB-C charger (USB Type-C port)
- Charging power: USB-C 18 W
- Rated current: 16 A
- Operating temperature: -10°C to +40°C
- Connection: Screw terminals
- Cable cross-section: 1.5 to 2.5 mm²
- Certification: CE & RoHS
- Permissible humidity: Up to 95%
- Stripping length: 10 mm
- Socket type: Europe (Type F)
- Material: Plastic
- Child protection: Yes
- Earthing: Yes
- Category: Power socket
- Function: Schuko Type F with USB-C charger
