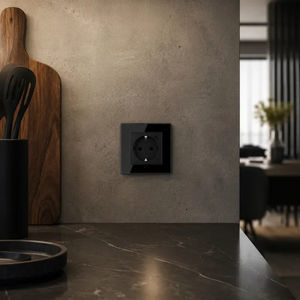

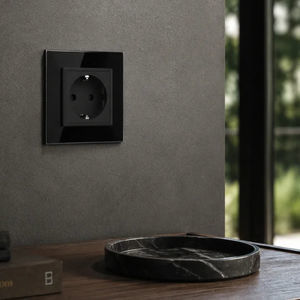

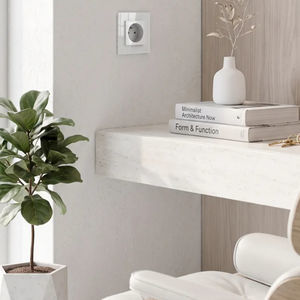

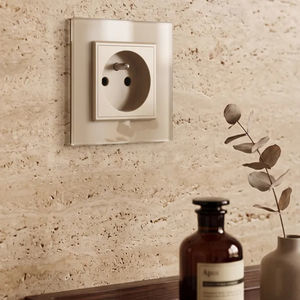

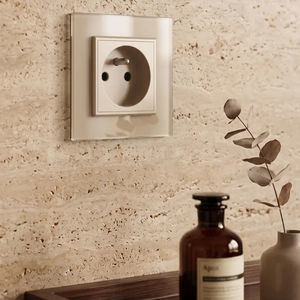

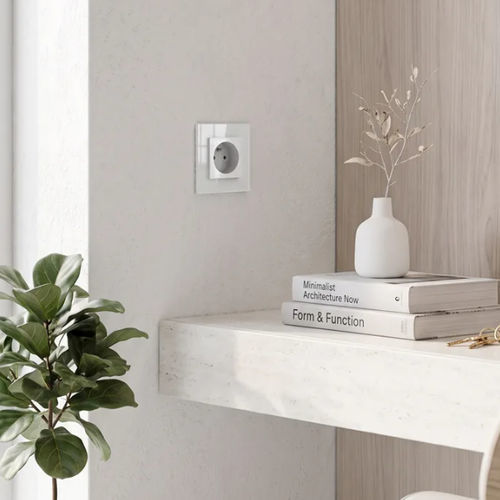

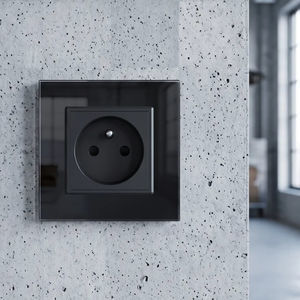

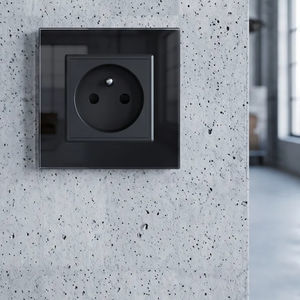

Power socket PP-FR-11B

electricwall-mountedflush

Short description
Choose a ready-to-fit solution with this 2P+E 16 A power socket, supplied with its mechanism, its metal frame and its gloss white tempered glass faceplate. Compliant with the French Type E standard, it combines safety, design and simple installation.

Detailed description
Modernise your electrical installations with this ready-to-fit 2P+E power socket, supplied complete with its mechanism, metal frame and gloss white tempered glass faceplate. Compliant with the French Type E standard, it lets you power your electrical equipment safely thanks to a 16 A rated current and integrated earthing. Fitted with child protection shutters, it offers enhanced safety. Its tempered glass plate provides a premium finish that resists scratches and fading. Ready to install, this socket suits both renovation projects and new builds.

Product highlights

• Ready-to-install product, supplied complete
• 2P+E earthed power socket, 16 A
• Built-in child protection shutters
• Tempered glass faceplate (gloss finish)
• Metal support included
• Quick installation
• Compatible with French installations (Type E)

Pack contents

• 1 x earthed socket - Type E, white (ref. FR-11)
• 1 x glass faceplate - 1 gang, white, gloss (ref. A-SR-11B)
• Metal mounting bracket and mechanism included

Installation & compatibility

• Compatible with round or square back boxes ≥ 40 mm
• Horizontal or vertical mounting
• For use on a standard electrical installation
• Live / neutral / earth connection (screw terminals)

Pair it with

• 1 power socket mechanism 2P+E 16 A Type E
• 1 SR series 1-gang glass faceplate
• 1 metal mounting bracket
• 1 installation guide

Technical specifications

• Manufacturer: Livolo
• Product reference: PP-FR-11B
• Series: SR
• Function: Ready-to-fit Type E socket (2P+E)
• Rated current: 16 A
• Socket type: France (Type E)
• Format: 1 gang
• Material: Tempered glass faceplate, metal support
• Connection: Screw terminals
• Child protection: Yes (shutters)
• Earthing: Yes (integrated)
• Certification: CE & RoHS
• Compatible back boxes: round or square ≥ 40 mm
• Mounting: Horizontal or vertical
• Available colours: White, Black, Gray, Gold
• Pack contents details: 1 x earthed socket (ref. FR-11), 1 x glass faceplate 1 gang (ref. A-SR-11B), metal bracket and mechanism
• Net weight: 0.146 kg
• Categories: Power socket Ready-to-fit products
