Power socket EU-13
wall-mountedflushfor indoor use

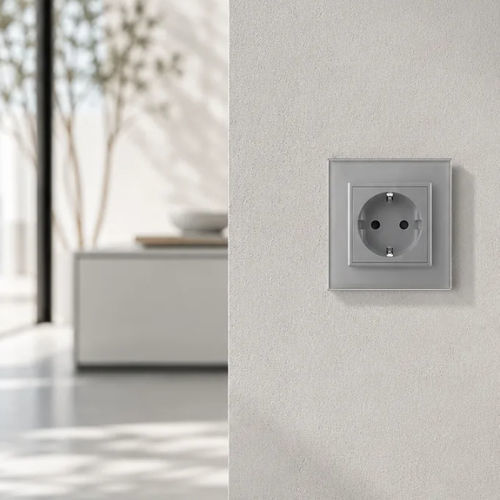

Power socket - EU-13 - LightON - wall-mounted / flush / for indoor use
Power socket - EU-13 - LightON - wall-mounted / flush / for indoor use
Power socket - EU-13 - LightON - wall-mounted / flush / for indoor use - image - 2
Power socket - EU-13 - LightON - wall-mounted / flush / for indoor use - image - 3
Power socket - EU-13 - LightON - wall-mounted / flush / for indoor use - image - 4
Power socket - EU-13 - LightON - wall-mounted / flush / for indoor use - image - 5
Power socket - EU-13 - LightON - wall-mounted / flush / for indoor use - image - 6
Add to favorites
Compare this product
Go to the LightON website for more information

Characteristics

Type
power
Installation
wall-mounted
Mounting
flush
Interior/exterior use
for indoor use
Style
contemporary
Applications
commercial
Shape
square
Finish
matte
Color
gray
Other characteristics
Schuko, with child protection

Description

Short description
Powers your electrical equipment safely with a 16A earthed power socket mechanism compliant with European standards. This flush-mounted Type F (Schuko) mechanism fits most European installations and features a compact, standard profile for easy replacement in renovation or new-build projects. When combined with a glass faceplate (sold separately) it delivers a neat finish. The mechanism includes a child protection system and push-in terminals for fast wiring.

Product highlights
  • Standard 16A power socket compatible with European installations
  • Type F (Schuko) earthing contact for safe grounding
  • Push-in terminals for quick conductor connection
  • Built-in child protection
  • Designed for simple installation on existing wiring
  • Flush-mounted format compatible with glass faceplates (sold separately)
  • Suitable for residential and commercial applications


Installation & compatibility
  • Compatible with round or square back boxes ≥ 40 mm
  • Horizontal or vertical mounting
  • For standard electrical installations (live / neutral / earth)
  • Cable cross-section 1.5–2.5 mm², stripping length 10 mm


Pair it with
  • Gloss or matt SR tempered glass faceplate and metal mounting frame (sold separately)
  • Combinations from 1 gang to 4 gangs


What's in the box
  • Schuko earthed socket mechanism - type F, white
  • Installation guide
  • Glass faceplate and metal mounting frame sold separately


Technical specifications
  • Manufacturer: Livolo
  • Reference: EU-13
  • Dimensions: 45 × 45 × 30 mm
  • Type: Flush-mounted power socket mechanism
  • Operating temperature: -10°C to +40°C
  • Connection: Push-in terminals
  • Cable cross-section: 1.5 to 2.5 mm²
  • Certification: CE & RoHS
  • Permissible humidity: Up to 95%
  • Stripping length: 10 mm
  • Socket type: Europe (Type F)
  • Material: Plastic
  • Child protection: Yes
  • Earthing: Yes
  • Categories: Power socket
  • Function: Schuko type F
  • Weight: 0.058 kg
