Power socket FR-13

electricwall-mountedflush

Short description

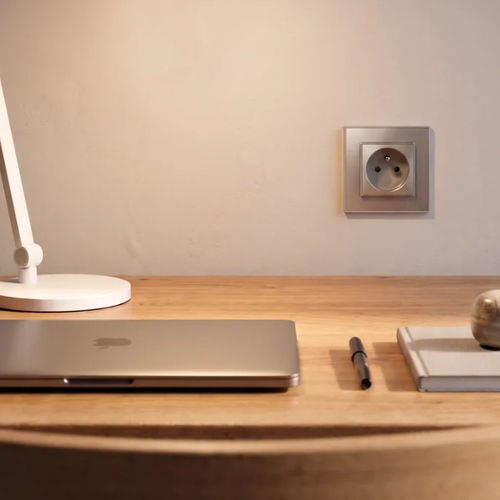

This 16A Type E earthed power socket mechanism (Livolo FR-13) is a flush-mounted solution designed for French-standard installations. It combines a compact technical mechanism with child protection and screw-terminal connections for reliable everyday use. Suitable for new builds and renovations, it delivers easy installation and a clean finish when paired with glass faceplates and metal frames (sold separately).

Product highlights

• Standard 16A power socket, Type E (France)
• Livolo FR-13 mechanism for flush-mounted installations
• Built-in child protection for enhanced safety
• Screw terminal connections compatible with 1.5–2.5 mm² cables
• Quick replacement or installation on existing wiring

Installation & compatibility

• Fits round or square flush boxes ≥ 40 mm depth
• Supports horizontal or vertical mounting
• Live / neutral / earth terminals
• For standard low-voltage household electrical circuits

Pair it with

• Gloss or matt SR tempered glass faceplate (sold separately)
• Metal mounting frame compatible with 1 to 4-gang combinations

What’s in the box

• Earthed socket mechanism - Type E, white (Livolo FR-13)
• Installation guide
• Glass faceplate and metal mounting frame sold separately

Technical specifications

• Manufacturer: Livolo
• Reference: FR-13
• Denomination: Earthed socket (Type E)
• Dimensions: 45 x 45 x 30 mm
• Type: Flush-mounted power socket
• Rated current: 16A
• Operating temperature: -10°C to +40°C
• Connection: Screw terminals
• Cable cross-section: 1.5 to 2.5 mm²
• Stripping length: 11 mm
• Material: Plastic
• Child protection: Yes
• Earthing: Yes
• Certification: CE & RoHS
• Permissible humidity: Up to 95%
• Weight: 0.058 kg
• Categories: Power socket
• Function: Type E
