Power socket FR-14

electricdoubletriple

Short description

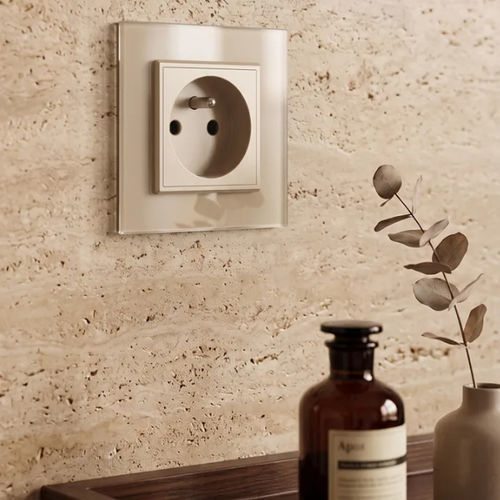

Provide a safe power outlet for French-standard installations with the Livolo FR-14 16A Type E earthed flush-mounted socket mechanism. Designed for new build and renovation projects, it fits standard interiors and, when combined with a glass faceplate (sold separately), delivers a flush finish while ensuring safe daily use. Fitted with a child protection system for enhanced residential safety.

Product highlights

• 16A Type E earthed power socket
• Compatible with French installations
• Child protection system
• Flush-mounted mechanism for faceplate integration
• Quick installation on existing electrical wiring

Installation & compatibility

• Compatible with round or square back boxes ≥ 40 mm
• Horizontal or vertical mounting
• For use on standard electrical installations
• Live / neutral / earth connection

Pair it with

• Gloss or matt SR tempered glass faceplate and metal mounting frame (sold separately)
• Available configurations from 1 gang to 4 gangs

What's in the box

• Livolo FR-14 earthed socket mechanism - Type E, white
• Installation guide
• Glass faceplate and metal mounting frame sold separately

Technical specifications

• Manufacturer: Livolo
• Reference: FR-14
• Dimensions: 45 x 45 x 30 mm
• Type: Flush-mounted power socket
• Operating temperature: -10°C to +40°C
• Connection: Screw terminals
• Cable cross-section: 1.5 to 2.5 mm²
• Certification: CE & RoHS
• Permissible humidity: Up to 95%
• Stripping length: 11 mm
• Socket type: France (Type E)
• Material: Plastic
• Child protection: Yes
• Earthing: Yes
• Categories: Power socket
• Function: Type E
• Weight: 0.058 kg
