Wall waterproofing system TILESAFE® SYSTEM

for floorfor flooring screedfor swimming pool

Overview

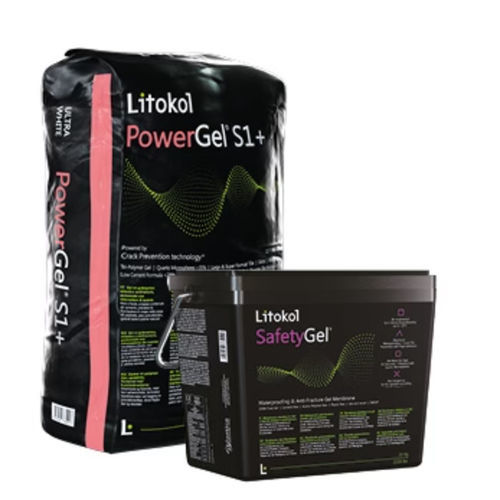

SafetyGel® combined with PowerGel®S1+ forms the High-Adhesion Anti-Fracture TileSafe® System, engineered for installing large-format tiles and extra-large slabs of any type and size in high-traffic areas, including cracked substrates (up to 3 mm).
The elastic system helps dissipate and neutralise substrate movements and covering expansion and distributes heavy loads evenly without stress, thus preventing crack damage to the newly bonded covering.

Integrated system engineered for

• Cracked substrates up to 3 mm
• Crack isolation >1.66 mm according to ANSI A118.12
• Tensile adhesion >1.8 N/mm2 according to EN 14891
• Low membrane thickness: approx. 1.5 mm

System combinations and options
On jobsites where crack isolation and rapid return-to-service times (12 hours) are required, TileSafe® System can be created by combining SafetyGel® with FastGel®S1+. Where more severe stresses are expected, TileSafe® System can be created by combining SafetyGel® with PowerGel®Pro Max: its dynamic crack-isolation capacity provides monolithic structural adhesion capable of absorbing crack or joint movements >3.2 mm. Where ultra-fast return to service (6 hours) is required, use FastGel® Pro.

Applications
Designed for high-traffic commercial and public areas and for bonding large-format porcelain, natural stone tiles and extra-large slabs on substrates including cracked substrates (up to 3 mm). Suitable where crack isolation, high adhesion and a controlled low-thickness membrane are required for architectural and interior specification projects.

Patents
TileSafe® System is a Litokol invention with International Patent Application filed no. 102025000025363.
The SafetyGel® formula and related waterproof and anti-fracture membrane are protected by International Patent Application No. 102025000025348.

Technical characteristics / specifications

• Crack isolation capability: up to 3 mm (system configuration dependent)
• Crack isolation certified parameter: >1.66 mm (ANSI A118.12) for the specified configuration
• Tensile adhesion: >1.8 N/mm2 (EN 14891)
• Membrane low thickness: approx. 1.5 mm
• Typical return-to-service times: 12 hours (with FastGel®S1+), 6 hours (with FastGel® Pro) depending on chosen system
• Intended use: high-adhesion anti-fracture waterproofing gel system for large-format tiles and extra-large slabs in high-traffic areas
• Compatible components: SafetyGel®, PowerGel®S1+, FastGel®S1+, PowerGel®Pro Max, FastGel® Pro
