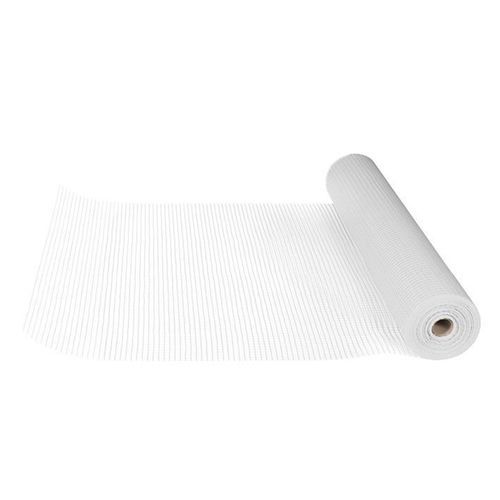

Fiberglass reinforcement grid HYDROMESH

leak-proofingprotectivefor facade

Product overview
Alkali-resistant fibreglass anti-crack mesh with a 10 x 10 mm mesh size. Designed for integration with HydroPad® gel waterproofing systems to ensure uniform stress distribution and to prevent micro-cracking on critical substrates.

Detailed description
HydroMesh is a structural fibreglass mesh treated for alkali resistance and engineered for use within HydroPad® gel membrane applications. The mesh is embedded into the first coat of waterproofing gel and then overcoated with a second coat to provide continuous reinforcement. Correct application with a minimum total gel thickness of 2 mm (two coats) ensures complete substrate coverage and the expected watertight performance. A compatible alkali-resistant primer is recommended to improve adhesion to HydroPad® gels. The 10 x 10 mm mesh geometry improves inter-coat bonding during curing and reduces discontinuities across the waterproofing layer.

Advantages

• Wide-mesh specification: Alkali-resistant fibreglass with 10 x 10 mm mesh size to ensure coverage in HydroPad® gel membrane applications.
• Full substrate coverage: Embedded in the first coat and overcoated with a second coat to achieve a minimum of 2 mm total gel thickness for watertight performance.
• Alkali-resistant treatment: Improves compatibility and adhesion with HydroPad® gels.
• Improved inter-coat bond: Mesh geometry enhances bonding between coats during cure and reduces physical discontinuities.

Technical specifications

• Material: Structural fibreglass, alkali-resistant treated.
• Mesh size: 10 x 10 mm.
• Compatibility: For integration with HydroPad® gel waterproofing systems.
• Application method: Embed in first coat of waterproofing gel and cover with a second coat.
• Minimum total gel thickness with HydroMesh: 2 mm (in two coats) to guarantee watertight performance.
• Function: Ensures uniform stress distribution and prevents micro-cracking on critical substrates.
• Recommendation: Use alkali-resistant primer for improved adhesion to HydroPad® gels.
