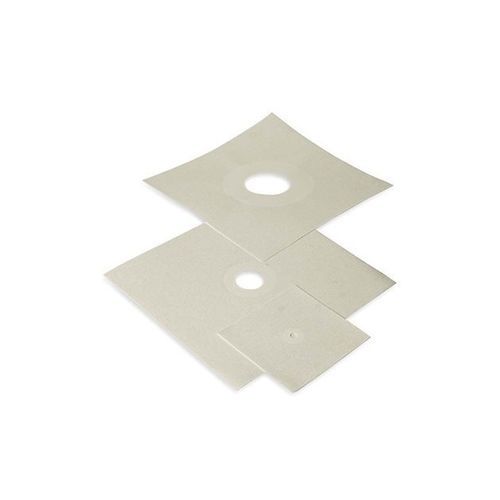

Protection sealing HYDROCOLLAR

for wallfor floorfor shower

Product overview
Pre-formed composite elastomeric collars designed to provide dynamic sealing and full waterproofing of service and pipe penetrations in critical areas such as showers, terraces and swimming pools. Compatible with 6D membrane systems, SafetyGel, HydroPad and Litokol cementitious waterproofing products.

Detailed description
HydroCollar collars are pre-formed, crack-resistant elastomeric units intended to waterproof pipe and service penetrations before installation of ceramic tiles and natural stone. They are formulated to bond reliably to cementitious substrates and tiles when used with SafetyGel (continuous elastic watertight gel membrane), HydroPad (single-component breathable tri-polymer gel) or Litokol cementitious waterproofing systems.

Size variants
HydroCollar 8 – gasket size: 120x120 mm – hole diameter: 8 mm – recommended pipe Ø: 15–20 mm
HydroCollar 35 – gasket size: 180x180 mm – hole diameter: 35 mm – recommended pipe Ø: 45–60 mm
HydroCollar 65 – gasket size: 250x250 mm – hole diameter: 65 mm – recommended pipe Ø: 75–125 mm

Advantages

• Crack-resistant pre-formed design for reliable waterproofing of penetrations under ceramic tile and natural stone finishes.
• Easy bonding to cementitious substrates and tiles when used with SafetyGel, HydroPad or Litokol cementitious waterproofing products.
• Multi-layer HydroCorner technology: modified polyethylene waterproof film coated on both sides with a high-surface-area modified polypropylene non-woven to ensure excellent adhesion during waterproofing operations.

Usage & compatibility
Designed for dynamic sealing and complete waterproofing of service penetrations in showers, terraces and swimming pools. Compatible with 6D membrane systems, SafetyGel elastic membrane, HydroPad tri-polymer gel and Litokol cementitious waterproofing products.

Technical specifications

• Product type: Pre-formed composite elastomeric collar for waterproofing penetrations.
• Applications: Swimming pools, terraces, showers, under ceramic tiles and natural stone installations.
• Materials / technology: Modified polyethylene waterproof film + modified polypropylene non-woven on both sides (multi-layer HydroCorner technology) for high adhesion.
• Compatibility: 6D membrane systems; SafetyGel elastic membrane; HydroPad (single-component breathable tri‑polymer gel); Litokol cementitious waterproofing products.
• Available sizes and pipe ranges: HydroCollar 8 (gasket 120x120 mm; hole Ø 8 mm; pipe Ø 15–20 mm); HydroCollar 35 (gasket 180x180 mm; hole Ø 35 mm; pipe Ø 45–60 mm); HydroCollar 65 (gasket 250x250 mm; hole Ø 65 mm; pipe Ø 75–125 mm).
• Key features: Crack-resistant, easily bonded to substrates, provides dynamic sealing for service penetrations.
