Aluminum cladding LBA.205.5978
aluminum alloyextruded aluminuminterlocking

aluminum cladding
aluminum cladding
aluminum cladding
aluminum cladding
aluminum cladding
aluminum cladding
aluminum cladding
aluminum cladding
aluminum cladding
aluminum cladding
Add to favorites
Compare this product


Characteristics

Material
aluminum, aluminum alloy, extruded aluminum
Installation
interlocking
Finish
lacquered, anodized
Other characteristics
custom, modular

Description

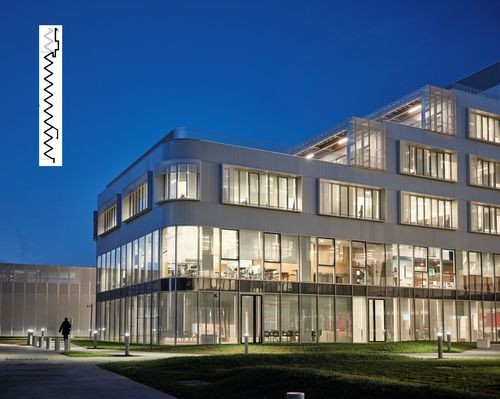

Profile LBA 205.5978: aluminium 6060 T6 thickness 2 mm with quick-fit and locking system. Blades held in place by through-fixing on one edge and interlocked on the other. This system provides a surface with a continuous appearance with all the fixing parts being invisible. The extruded aluminium profile REF LBA 205.5978 consists of 10 accordion corrugations of 20 mm each and 14 mm overhang forming a 200 mm modular element. It can be installed horizontally or vertically. When installed horizontally, the starting profile Ref 216.6828 makes it possible to hide the first fixing parts. Manufacturing length up to 7M300
