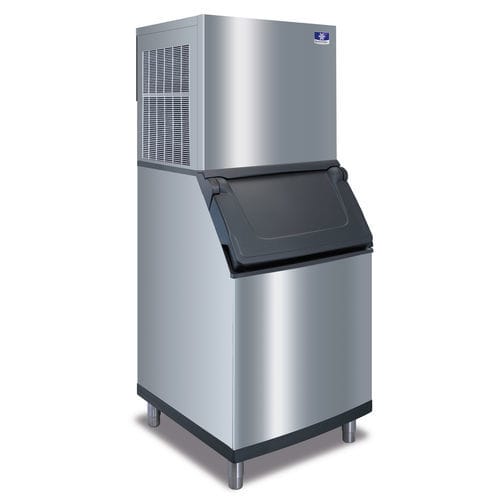

Commercial ice flaker RFK0620

Product overview
Flake ice forms small, hard particles that conform around contact items for fast cooling and stable display. The RFK0620 series is designed for commercial food display, salad bars and cold therapy/healthcare applications where contact cooling is required.

Key features

• Flake ice
  • Ice adheres around items without bruising; ideal for food presentation, seafood/salad display and medical cold therapy.
• Ice production
  • Production up to 320 lb/day (≈145 kg/day), depending on operating conditions.
• Construction
  • Stainless steel cabinet with high-load capacity bearings for enhanced operational reliability.
• Power & efficiency
  • Primary power input: 220–240 V, 50 Hz, 1 PH. Energy use: 4.99 kWh per 100 lb (≈45.4 kg) of ice.
• Certifications
  • RFK0620W model shown with AutoQuotes, CE and ETL listings.
• Commercial warranty
  • Ice maker parts & labor: 3 years; Evaporator parts & labor: 5 years; Compressor parts: 5 years, compressor labor: 3 years.

Technical specifications

• Models
  • RFK0620A / RFK0620W
• Dimensions (W × D × H)
  • 22" × 23 5/8" × 25" — 55.9 cm × 60 cm × 63.5 cm
• Ice production
  • Up to 320 lb/day (≈145 kg/day), actual output varies with ambient and water conditions.
• Power input
  • 220–240 V, 50 Hz, single phase (1 PH).
• Energy use
  • 4.99 kWh per 100 lb (≈45.4 kg) of ice.
• Certifications (example)
  • RFK0620W: AutoQuotes, CE, ETL.

Downloads / Documentation

• Wiring diagrams, tubing diagrams and an owner instruction manual are listed as downloadable assets on the product page (documents available from the site).
