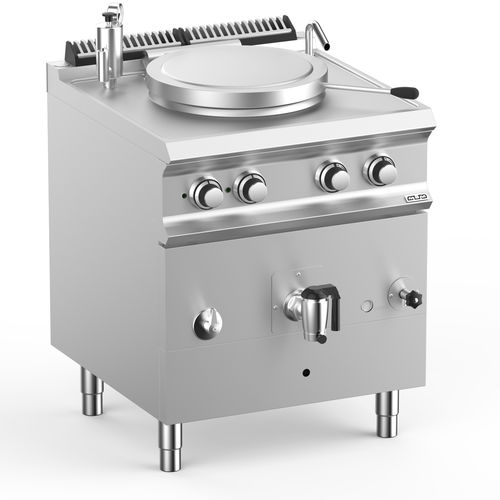

Electric boiling pan PEE7750I
steamfloor-mountedcommercial

electric boiling pan
electric boiling pan
Add to favorites
Compare this product


Characteristics

Power source
electric
Type
steam
Other characteristics
floor-mounted
Market
commercial

Description

INDIRECT HEATING, ELECTRIC MONOBLOC The tank sides and the interspace are in AISI 304, the bottom is in AISI 316 for greater resistance to corrosion. The AISI 304 lid ensures minimal loss of steam and heat (double insulation lid is available as option to guarantee better thermal insulation). Hot and cold water tap with swivel nozzle is placed on top of the worktop. Indirect heating generated by the low pressure steam of the interspace water evenly heats the surface of the container. Interspace water-level viewer in the front panel. Gas versions: stainless steel tubular burner with self-stabilizing flame. Pilot flame with thermocouple safety device. Piezo-electric ignition of the pilot. Safety valve with pressure gauge. Electric versions: power adjustment with 4-position switch, pressure gauge for the automatic control of the interspace steam, safety valve with gauge. External dimensions - WxDxH (cm) - 70x73x85 Boiling pan capacity (lt) - 50 Total power (kW) - 9 IPX5 - Boiling pan dimensions - ØxH (cm) - 40x42 Supply (N) - 400V 3N 50/60Hz Weight (kg) - 93 Volume (m3)
