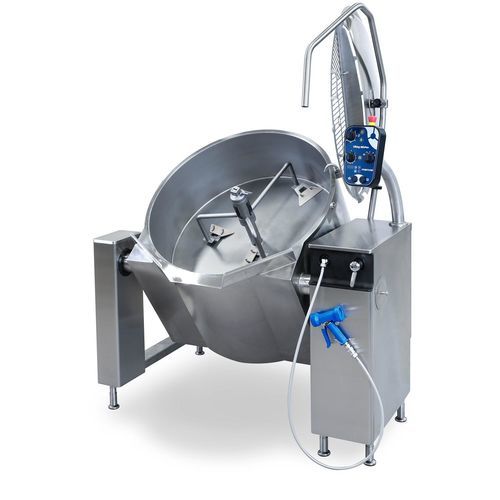

Electric bratt pan VIKING MIXPAN 250

for commercial kitchen

Description
Model – Viking MixPan 250L ELECTRIC code 4224260. The Metos Viking MixPan is a tilting bratt pan with integrated mixing function, manufactured in Finland. Its automated functions support continuous food production with minimal supervision. The user can mix and cook simultaneously. Tilting height from pouring spout to floor: 600 mm. The unit is ergonomically designed for easy use, cleaning and hygiene. The MixPan is suitable for professional kitchens and meets EU safety standards with IPX5 protection.

Optional features / Accessories

• Electric tilting
• Temperature control 50℃–250℃
• Large, clear control panel
• Variable mixing in two directions 10–40 rpm
• 2 pre-programmed mixing programs
• Can be combined with Viking and Metos 4G kettles to save space

Volumes
Gross volume 275 l. Net volume 250 l.

Standard delivery includes

• Viking MixPan complete with 2 mixing programs
• Electric tilting
• Fully raised control panel
• Emergency off controls
• Accessory hooks
• Mixing tool with removable scrapers
• Lift-off safety grid lid
• Support pillar

Construction
Made of stainless steel EN1.4301 and EN1.4016. The pan is thoroughly insulated.

Control panel
Large, ergonomically raised electromechanical control panel with temperature and mixing controls and emergency stop. Optional factory-installed features available: manual or automatic food-water filling and choice of S1, S2 or S3 hand-showers.

Heating function
Temperature adjustable between 50℃–250℃.

Installation
Can be mounted to the floor with surface or subsurface installation frames (option) or supplied free-standing (FS option) for easy delivery and setup. Units can be grouped or combined with Metos 4G kettles to reduce floor space.

Mixer features

• Strong, maintenance-free auto-reverse mixer for stirring and mixing
• Food-grade thermopolymer scrapers (optional steel scrapers)
• Mixing speed range 10–40 rpm
• Two-directional, bottom-mounted mixing tool with automatic reversing to mix without product damage
• Axle seals positioned above product level to prevent leakage
• Mixing tool removable for easy cleaning
• Mixer stops in less than a second when lid opened
• Two preset programs: P1 (soups, stews, sauces) and P2 (stirring during cooking; adjustable power/speed and duration)

Tilting functions

• Durable tilting driven by electric or hydraulic actuators depending on pan size
• Tilting height to floor: 600 mm (compatible with MPT 450 multi-purpose trolley)

Occupational safety

• Mixer stops in under one second if the lid is opened
• Tilting operates only when a button is engaged
• Mixing with the lid open is prevented in all circumstances per safety regulations

Food water filling (option)

• Manual food-water filling operated via switch
• Automatic filling option doses required amount
• No need to open safety lid to add food water — nozzle and lid designed for filling

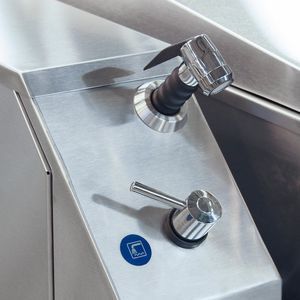

Hand-shower (option)

• S1 – standard hand-shower
• S2 – heavy-duty hand-shower
• S3 – recoiled hand-shower

Technical specifications

• Gross volume: 275 l
• Net volume: 250 l
• Weight: 350.0 kg
• Dimensions: 1560 × 1100 × 900/1535 mm
• Electrical: 400/230 V, 63 A, 38,3 kW, 3NPE, 50/60 Hz
• Tilting height (pouring spout to floor): 600 mm
• Temperature range: 50℃–250℃
• Mixing speed: 10–40 rpm
• IP protection grade: IPX5
• Construction material: stainless steel EN1.4301, EN1.4016
• Standard delivery: 2 mixing programs, electric tilting, raised control panel, emergency off, accessory hooks, mixing tool with removable scrapers, lift-off safety grid lid, support pillar
