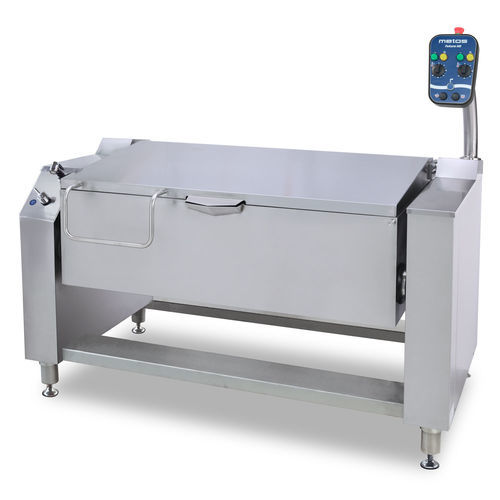

Electric bratt pan FUTURA HD 100L

for commercial kitchen

Description
The Metos Futura HD 100 L bratt pan is built for high-capacity professional kitchens and continuous, demanding use. Two robust legs provide stability; motorised tilting, easy cleaning and comprehensive safety features ensure safe and efficient operation. The unit must be fixed to the floor.

Design and cooking performance
The pan features a single cooking basin with an adjustable temperature range of 50 °C–250 °C. An aluminium core surrounded by heating elements enables rapid heating. The frying area is 0.4 m² with a depth of 273 mm. Two GN 1/1 containers can be accommodated on the bottom. Double-walled construction provides thermal insulation.

Tilting and handling
Motorised tilting is fitted. Tilting is disabled with the lid on and while filling with water. The emptying tilt angle is 70° and the maximum tilt is 90°. The distance from the pan pouring spout to the floor is 570 mm (measured at 68° tilt).

Features

• Balanced, insulated lid
• Continuous, seamless stainless steel cooking surface
• Stainless steel frame and structure
• Elevated control panel located in the right leg
• Electromechanical controls
• Emergency stop switch
• Overheating protection

Options and accessories

• Optional (ordered separately): hand shower
• Optional (ordered separately): water filling tap
• Accessory: strainer plate

Additional Information
Weight: 280.0 kg
Dimensions: 1208 × 955 × 1559 mm
Capacity: 100 litres
Technical information: 400/230 V, 32 A, 20.7 kW, 3NPE, 50 Hz, 70 dB; CW: G3/4

Technical specifications

• Model / series: Metos Futura HD
• Capacity: 100 litres
• Frying area: 0.4 m²
• Depth: 273 mm
• Temperature range: 50 °C–250 °C
• Heating: aluminium core surrounded by heating elements for rapid heating
• Tilting: motorised; emptying tilt angle 70°; maximum tilt 90°; tilt disabled with lid on or while filling with water
• Distance from pouring spout to floor: 570 mm (at 68° tilt)
• Construction: continuous, seamless stainless steel cooking surface; stainless steel structure; double walls for insulation
• Controls: elevated control panel in right leg; electromechanical control
• Safety: emergency stop switch; overheating protection
• Options (ordered separately): hand shower; water filling tap
• Accessories: strainer plate
• Weight: 280.0 kg
• Dimensions: 1208 × 955 × 1559 mm
• Electrical / technical data: 400/230 V, 32 A, 20.7 kW, 3NPE, 50 Hz, 70 dB; CW: G3/4
• SKU: 3756394
