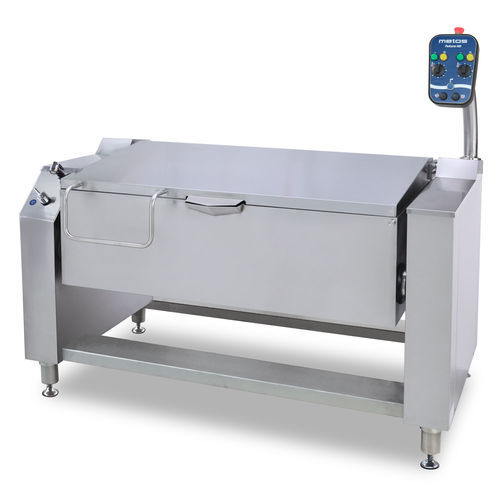

Electric bratt pan FUTURA HD 150L

for commercial kitchen

Overview
The Metos Futura HD 150 L tilting bratt pan is a high-capacity cooking appliance designed for large-scale professional kitchens. It features two independently controlled frying sections, continuous stainless steel cooking surface and a robust stainless steel structure. The unit requires floor anchoring for safe operation and includes motorised tilting for ergonomic emptying.

Key features

• Two individually adjustable frying sections (temperature range 50 °C–250 °C)
• Balanced, insulated cover for safe handling
• Continuous, seamless stainless steel frying surface for easy cleaning
• Stainless steel frame and cladding
• Elevated control panel located in the right support leg
• Electromechanical controls with emergency stop
• Overheating protection and safety interlocks
• Stable support with two sturdy legs; floor fixing required

Options

• Water filling tap for quick fill
• Hand shower for rinsing and cleaning

Accessories

• Strainer plate for draining and separating solids

Technical specifications

• SKU: 3756283
• Capacity: 150 litres
• Frying area: 0.59 m²
• Depth: 273 mm
• Weight: 360.0 kg
• Dimensions: 1553 × 955 × 1559 mm
• Electrical: 400/230 V, 50 A, 27.6 kW, 3NPE, 50 Hz
• Cold water connection (CW): 3/4
• Tilting: motorised; tilt for emptying 70°, max 90°; pouring spout distance to floor 550 mm (at 68°)
