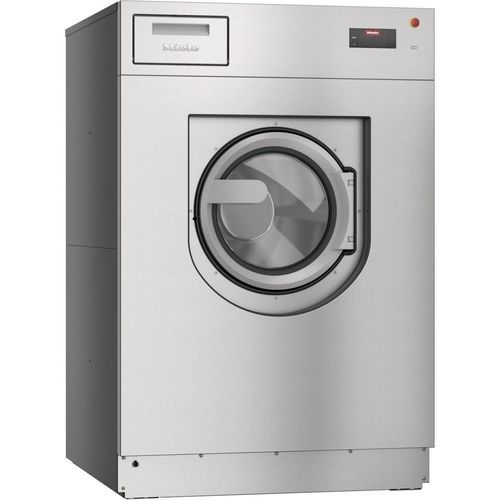

Front-loading washing machine PWM 935 [EL DV DD SOM]

commercialenergy-saving

Overview
Professional washing machine for marine applications. Freely programmable controls. 35 kg load size. Stainless steel front and control panel. Electric heating.

Key benefits

• Large-capacity honeycomb drum (320 l) for gentle fabric care and intensive cleaning
• Maximum load size: 35 kg (load ratio 1:9)
• Reduced resource consumption: up to 19% less water and 40% less energy versus predecessor
• Short programme cycles and efficient operation (professional spin performance)
• BoostSpin for intensive dewatering and minimized residual moisture, enabling short subsequent drying
• M Touch Pro Plus colour touch display for intuitive operation
• Freely programmable controls—full flexibility to adapt wash parameters
• Prepared for network connectivity: LAN and WLAN (WiFi) interfaces, ready for software solutions
• Suitable for offshore / marine use

Highlights / Functional features

• Patented honeycomb drum 2.0 with scoop ribs for optimum wetting and laundry care
• Automatic door lock (OneFingerTouch) for easy closing
• 3-dimensional imbalance monitoring for professional spinning results
• Maintenance-free asynchronous motor with frequency converter for high performance and durability
• Precise volumetric flow metering (option) for controlled water consumption
• Connector Box available to interface with external systems (payment, dispensing, peak-load etc.)
• Optional water recycling and water recovery systems available

Application areas

• Designed for professional laundry environments including marine and offshore applications
• Special programmes and options for cleaning cloths, mops, protective garments, duvets and pillows

Representative technical tables (selected entries)
Construction type: Front loader
Range: Performance Plus
Front: Stainless steel
Control panel colour: Stainless steel
Load ratio: 1:9
Load in kg: 35
Drum volume in l: 320
Door opening [Ø] in mm: 415
Door opening angle: 180°

Cold water connection: 4 x 1/2" with 3/4" union
Hot water connection: 2 x 1/2" with 3/4" union (if used)
Dump valve: DN 70

Heater type: Electric
Electrical connection (standard): 3N AC 400V 50Hz
Heater rating: 30 kW
Total connected load: 31.6 kW
Fuse rating: 63 A

Sound emission (workplace): 71 dB(A) re 20 µPa
Heat dissipation into room: 6.1 MJ/h

caractéristiques / spécifications techniques

• Model family: PWM 935
• Brand: Miele Professional
• Application: Marine / offshore-capable professional washer-extractor
• Programmability: Freely programmable (all wash parameters adjustable)
• Display / Controls: M Touch Pro Plus colour touch display
• Drum: Patented stainless-steel honeycomb drum 2.0 (scoop ribs)
• Drum volume: 320 l
• Maximum load: 35 kg
• Load ratio: 1:9
• Door diameter: 415 mm
• Door hinge: Right; automatic door lock (OneFingerTouch)
• Spin speed (max): 1060 rpm
• Residual moisture (cold rinse): approx. 51% (hot rinse approx. 44%; cleaning-cloths value approx. 14%)
• g-factor: 502
• Tested operating hours (typ.): 30000 h (laboratory test)
• Heating: Electric, heater rating 30 kW
• Electrical variants available (examples): 3N AC 400V 50Hz (standard); other voltage variants offered
• Total connected load: 31.6 kW; recommended fuse 63 A (standard variant)
• Water consumption (Cottons 60°C, cold water connection): 262.5 l total; specific 7.5 l/kg; energy 0.22 kWh/kg; programme duration ~61 min
• Options: BoostSpin, EcoSpeed (patented wash rhythm), water recycling, volumetric flow meter, connector box, payment-system connection, weighing plinth (retrofittable)
• Connectivity: LAN and WiFi interfaces; prepared for Miele MOVE and high-performance software solutions
• Standards / certifications: CE, VDE/EMC, splash-proof rating IPX4, complies with Machinery Directive
