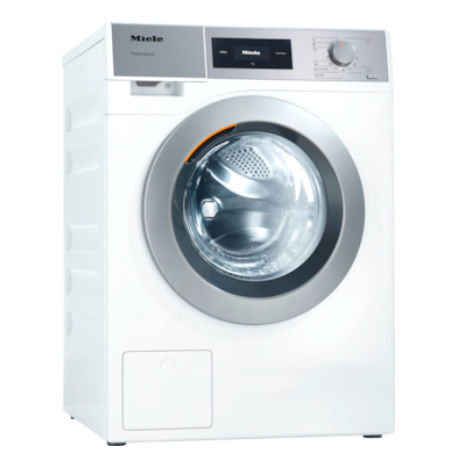

Front-loading washing machine PWM 507 [EL DP-1]

stackablefor hotelcommercial

Product overview
Professional front-loading washing machine (Little Giants) with electric heating and integrated drain pump. Performance: 7 kg in 59 min. Designed for intensive commercial use and a wide range of target groups (hotels, care homes, laundrettes, small businesses etc.).

Key features

• Drum volume: 64 l
• Load capacity: 7 kg
• Short programme cycles for high throughput (e.g. 7 kg in 59 min performance cycle)
• Energy and water efficient: up to 22% less water consumption and 28% less energy consumption (vs predecessor)
• M Select control unit with many standard and special programmes; programmable control available
• Future-proof connectivity: LAN and WLAN options; WiFiConn@ct for smartphone/app connectivity
• Connection option for payment systems (suitable for self-service operation)
• Honeycomb drum with perforated stainless-steel rear panel for gentle, fast wetting
• EcoSpeed – patented wash rhythm for reduced water usage and optimised mechanical action
• 3-dimensional imbalance monitoring for professional-level spinning and moisture removal
• Commercial shock absorbers for smooth running (rated for long service life)
• Stainless-steel flange and professional appliance technology for high resistance to aggressive cleaning agents
• Drum lighting for easy unloading; option to add laundry during early programme phase

Product details (high level)
Construction type and version: Front-loader, stackable
Range: Performance
Front: Lotus white
Control panel colour: Stainless steel
Door opening (Ø) in mm: 300
Door opening angle: 167° (right hinge)
Drum volume: 64 l
Load size: 7 kg
Tested for intensive use (professional quality testing)

Connections and dispensing
Cold water connection: 1 x 1/2" hose with 3/4" union
Hot water connection: 1 x 1/2" hose with 3/4" union
Drain pump: DN 22
Detergent drawer: 3 compartments; EasyDos-compatible (up to 6 liquid dispenser pump connections) with empty-sensor available

Electrical / Heating (standard variant)
Heating type: Electric
Standard electrical connection: 230V~
Heater rating (standard): 2.65 kW
Total connected load (standard): 2.85 kW
Fuse rating (standard): 13 A
Alternative voltage variant (optional): 2N~ 400V 50Hz — heater rating 5.3 kW — total connected load 5.5 kW — fuse 13 A

Hygiene & performance
Disinfection capability: proven hygiene performance (Little Giants series removes >99.9% of viruses in certified test conditions)
Disinfection rinse available for maximum hygiene (high-temperature/holding time rinse)
High temperature consistency with continuous monitoring for reliable cleaning and hygiene

Efficiency & consumption (Cottons 60°C reference programmes)
Specific water consumption (cold connection): 7 l/kg (note: Cottons 60°C programme reference)
Specific energy consumption (cold connection): 0.14 kWh/kg
Specific water consumption (hot connection): 6.6 l/kg
Specific energy consumption (hot connection): 0.06 kWh/kg
Water consumption (Cottons 60 °C, cold connection): 49 l per cycle
Energy consumption (Cottons 60 °C, cold connection): 0.98 kWh (programme reference)
Programme duration (Cottons 60 °C): 69 min (cold connection) / 59 min (hot connection with hot rinse)
Weighted energy per 100 cycles (Eco 40–60): 45 kWh
Weighted water consumption per cycle (Eco 40–60): 37 l
Energy efficiency class: A
Spin efficiency class: A

Spin / drying data
Max spin speed: 1600 rpm
g-factor: 704
Residual moisture (cold rinse): approx. 48%
Residual moisture (hot rinse): approx. 45%

Dimensions & weight
External dimensions (H x W x D): 850 x 605 x 714 mm
Gross dimensions including packaging (H x W x D): 944 x 660 x 768 mm
Net weight: 99 kg
Gross weight: 103 kg
Maximum floor load (dynamic): 2820 N

Emissions / sound / heat
Emission sound pressure level in the workplace: ≤ 70 dB(A) re 20 µPa
Airborne noise emission during spin cycle: 72 dB(A)
Heat dissipation into room (max): 1 MJ/h

Standards & compliance
CE marked; UKCA; complies with Machinery Directive; IPX4 splash protection; WEEE

caractéristiques / spécifications techniques

• Model / Denomination commerciale: PWM 507 [EL DP-1]
• Brand: Miele
• EAN: 4002516361657
• Material number / Article no.: Material number 11105750 (Article number referenced on product page)
• Drum volume: 64 l — Load: 7 kg — Performance cycle: 7 kg in 59 min
• Controls: M Select control, programmable; countdown display and programme sequence indicator
• Connectivity: LAN (optional), WLAN (optional), WiFiConn@ct; communication slot for modules
• Accessories/consumables: EasyDos dispensing adapters and consumables available separately
• Safety / durability: stainless-steel flange, commercial shock absorbers, maintenance-free synchronous motor
