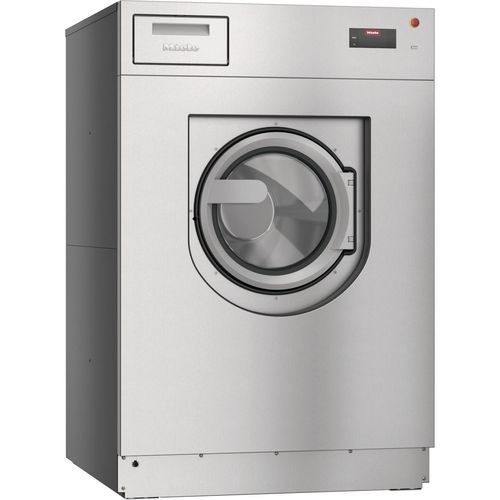

Front-loading washer-extractor PWM 927 [EL DV DD SOM]

floor-standingcommercialenergy-saving

Overview
Professional washer-extractor for marine and offshore use with freely programmable controls. 27 kg nominal load and a 240 l Honeycomb drum 2.0 in stainless steel. Designed for high hygiene requirements and heavy-duty commercial operation.

Key features

• Honeycomb drum volume: 240 l (max. load: 27 kg)
• Up to 19% lower water consumption and 40% lower energy consumption vs. predecessor models
• BoostSpin for intensive dewatering and reduced residual moisture
• Colour touch display: M Touch Pro Plus for intuitive control
• Freely programmable controller for full adjustment of wash parameters
• Prepared for LAN and WiFi connectivity (future-ready software integration)
• Large door opening Ø 415 mm with 180° swing for ergonomic loading/unloading
• Automatic door lock (OneFingerTouch) for easy closing

Product benefits (highlights)

• Economical operation with low water and energy consumption
• Patented Honeycomb drum 2.0: gentle fabric care combined with intensive cleaning
• Short programme cycles and commercial-grade components for efficient throughput
• 3-dimensional imbalance monitoring for reliable spin and moisture extraction
• BoostSpin: enables shorter subsequent drying times
• EcoSpeed (patented wash rhythm): optimised mechanical action and water use
• Ergonomic handling: large door, OneFingerTouch closing and automatic door lock
• High flexibility via freely programmable programmes
• Multilingual user guidance on the display

Applications
Intended for shipboard laundries, offshore installations and other marine environments. Suitable for heavily soiled textiles, cleaning cloths, mops, PPE and hygiene-critical linen.

Performance and consumption (examples)
Cottons 60°C (cold water connection): specific water consumption 7.4 l/kg; specific energy consumption 0.22 kWh/kg; total water 201 l; energy 5.9 kW; programme duration ~57 min.
Cottons 60°C (hot water connection): specific water consumption 7.3 l/kg; specific energy consumption 0.06 kWh/kg; total water 197.9 l; energy 1.61 kW; programme duration ~47 min.
Eco (Cottons ECO 50°C) examples: water ~193.5 l (cold), energy ~4.48 kW; programme durations vary (approx. 34–42 min depending on connection and settings).

Control & Connectivity

• Control system: M Touch Pro Plus
• Programmability: freely programmable
• Delay start: selectable
• Countdown / time-left display
• Selectable display languages; language can be changed during operation
• Interfaces/options: LAN, WLAN (WiFi), Connector Box for external systems (payment, dosing, peak-load)

Dispensing

• Detergent drawer with 4 compartments
• Supports up to 12 mechanical connections for liquid dispenser pumps (controller-dependent)
• Optional empty-sensor for dispensers

Water connection & Drainage
Cold water: 4 x 1/2" with 3/4" union; Hot water: 2 x 1/2" with 3/4" union; Dump valve DN 70 for reliable drainage with coarse soiling.

Standards & Hygiene
Certified hygiene programmes and disinfection rinse options (final rinse at high temperature/holding time). Independently verified hygiene quality with proven virucidal efficacy (>99.9% virus removal in relevant tests).

Downloads
Product sheet, operating instructions, installation diagram, program chart, EU Declaration of Conformity and hygiene certificate available as product documents.

Technical specifications

• Model: PWM 927
• Brand: Miele
• EAN: 4002516928430
• Load capacity: 27 kg (load ratio 1:9)
• Drum volume: 240 l
• Door opening diameter: 415 mm; opening angle: 180°; hinge: right
• Drum material: Stainless steel (patented Honeycomb drum 2.0 with scoop ribs)
• Spin speed: 1100 rpm
• g-factor: 541
• Residual moisture (cold rinse): 46% (example)
• Residual moisture (hot rinse): 41% (example)
• Residual moisture for cleaning cloths (example): ~10% (varies by cloth)
• Heater type: Electric
• Heater rating: 24 kW
• Total connected load: 25.6 kW
• Fuse rating (standard variant shown): 50 A
• Standard electrical connection (example): 3N AC 400V 50Hz
• Alternative voltage variants available (e.g. 3 AC 230V 50Hz; 3 AC 400V 50Hz; 3 AC 480V 60Hz)
• External dimensions (H × W × D): 1646 × 1090 × 1226 mm
• Gross dimensions with packaging (H × W × D): 1793 × 1365 × 1425 mm
• Net weight: 643 kg; Gross weight (with packaging): 700 kg
• Maximum floor load (dynamic example): 8993 N
• Emission sound pressure level (workplace): 73 dB(A) re 20 µPa
• Heat dissipation into the room (example): 4.7 MJ/h
• Tested operating hours (durability example): 30,000 h (laboratory)
• Typical programmes: Cottons 60°C, Cottons ECO 50°C, Mops standard 60°C, cleaning cloths, PPE
• Special functions: BoostSpin, EcoSpeed, patented pre-spin, automatic load control Plus, volumetric flow meter (optional), weighing plinth (retrofittable)
• Connection options: LAN, WLAN, Connector Box, payment system connectivity (optional), optical service interface
• Dispensing: 4-compartment drawer; empty sensing for consumables
• Suitable for: Marine and offshore applications, laundries with high hygiene and robustness requirements
• Standards / certifications: CE, VDE/EMC, VDE approvals, IPX4 splash-proof rating, WEEE, Machinery Directive conformity
