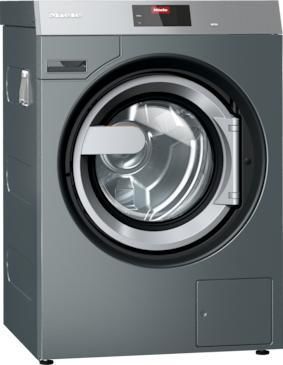

Front-loading washer-extractor PWM 509 MOP STAR [EL DV DD]

floor-mountedcommercialenergy-saving

Overview
Professional washing machine, electrically heated, with drain valve and detergent drawer; M Touch Pro colour touch display; powder-coated, iron grey; designed for facility management and mop/cleaning cloth reprocessing.

Key features

• Drum volume: 80 l
• Maximum load size: 9 kg
• Top cleaning and low consumption values due to Miele technology (honeycomb drum and optimised washing rhythms)
• Colour touch display: M Touch Pro for intuitive programme and function access
• Residual moisture (hot rinse): 44 %; g-factor: 518 (high spin efficiency)
• Connectivity: LAN and WiFi prepared for integration with software solutions and networked management
• Automatic door lock (OneFingerTouch) and large drum opening for ergonomic loading/unloading

Product benefits (highlights)

• Economical and efficient: low consumption values and ECO programmes (significant energy savings in ECO mode)
• Gentle fabric care thanks to stainless-steel honeycomb drum
• Short programme cycles for high throughput and efficiency
• 3-dimensional imbalance monitoring for reliable moisture removal and optimal spin results
• Professional features for facility management: dump valve for coarse soiling, programmable controls, payment-system connection options and Connector Box for external systems

Construction type and general details
Construction type: Front loader
Range: Performance
Exterior colour (front): Iron grey
Control panel colour: Stainless steel
Load ratio: 1:9
Load in kg: 9 kg
Drum volume: 80 l
Door opening (Ø) in mm: 370
Door opening angle: 180°
Door hinge: right
Automatic door lock: yes (OneFingerTouch)
Maintenance-free synchronous motor: yes
Stainless steel honeycomb drum: yes

Performance data (typical programme results)
Specific water consumption (cold water connection, Cottons 60°C): 6.3 l/kg (56.2 l total)
Specific energy consumption (cold water connection, Cottons 60°C): 0.13 kWh/kg (1.2 kW total)
Programme duration (Cottons 60°C, cold water): 49 minutes
With hot water connection (Cottons 60°C, hot rinse): water 59.3 l; energy 0.23 kW; programme duration 45 minutes
ECO programme (Cottons ECO 50°C, cold water): water 49.5 l; energy 0.82 kWh; duration 34 min (cold) / 32 min (hot)
Residual moisture (cold rinse): 47 %; (hot rinse): 44 %
Spin speed: 1300 rpm
g-factor: 518
Tested operating hours (laboratory): 30,000 h

Dispensing
Detergent drawer: 3 compartments
Flexible dispensing adapter: optional
Maximum number of connections for liquid dispenser pumps: 6
Empty sensor for containers: yes

Electrical connection (standard)
Heating type: Electric
Electrical connection: 1N AC 230 V 50/60 Hz
Heater rating: 5.2 kW
Total connected load: 5.5 kW
Recommended fuse rating: 25 A

Water connection / Drainage
Cold water: 1x 1/2" hose with 3/4" th. union
Hot water: 1x 1/2" hose with 3/4" th. union
Dump valve: DN 70 (professional drain valve for reliable drainage even with coarse soiling)

Dimensions and weight
External dimensions (H x W x D): 1020 mm x 704 mm x 730 mm
Gross dimensions incl. packaging (H x W x D): 1214 mm x 750 mm x 817 mm
Net weight: 140 kg
Gross weight (with packaging): 152 kg
Maximum floor load (dynamic + static): 2421 N

Capacities (examples for mop/cloth reprocessing)
Cloths (22 g): 210 pieces
Cotton mops 40 cm / 190 g: 47 pieces
Cotton mops 50 cm / 220 g: 41 pieces
Microfibre mops 40 cm / 120 g: 75 pieces
Microfibre mops 50 cm / 170 g: 53 pieces

Emissions and heat output
Emission sound pressure level in the workplace: 65 dB(A) re 20 µPa
Heat dissipation into the room (max): 2.3 MJ/h

Standards and approvals
CE marked; VDE-EMC and VDE compliant; IPX4 splash-proof rating; UKCA; WEEE; compliant with Machinery Directive 2006/42/EC

Notes
Machine is tailored for facility management: standard setup for processing mop heads and cleaning cloths with cleaning or disinfection solution and domestic-style programmes for work uniforms. Honeycomb drum and optimised programmes ensure gentle treatment and low consumption. The machine is network-ready and prepared for software solutions and payment/self-service systems.

Technical specifications

• Brand: Miele
• Model: PWM 509 Mop Star
• Type: Professional washer-extractor (front loader)
• Heating: Electric (5.2 kW heater)
• Capacity: 9 kg / 80 l drum
• Spin speed: 1300 rpm (g-factor 518)
• Drain: DN 70 professional dump valve
• Connectivity: LAN, WiFi; Connector Box for external systems
• Control: M Touch Pro colour touch display, programmable controls
• Dispensing: 3-compartment drawer + up to 6 liquid dispenser pump connections; empty sensing available
• Dimensions (HxWxD): 1020 x 704 x 730 mm
• Net weight: 140 kg
• Sound pressure: 65 dB(A)
