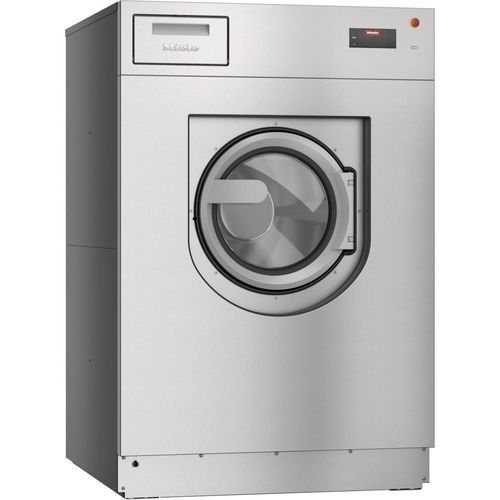

Front-loading washing machine PWM 927

commercialdryingenergy-saving

Product overview
Professional washing machine, electric heating for marine applications – freely programmable. 27 kg load size.

Key benefits

• Volume of the honeycomb drum: 240 l (maximum load size 27 kg)
• Up to 19% less water consumption and 40% less energy consumption compared to predecessor
• Short subsequent drying thanks to BoostSpin (intensive dewatering, minimised residual moisture)
• Intuitive operation via colour touch display: M Touch Pro Plus
• Prepared for connectivity: LAN and WiFi for integration with high-performance software solutions
• Patented honeycomb drum 2.0 for gentle fabric care and effective wetting
• Short programme cycles with premium commercial technology
• Professional 3D imbalance monitoring for reliable moisture removal
• Freely programmable controls allow adjustment of all wash parameters
• Large door opening (Ø 415 mm) for quick loading and unloading

Construction type and version (selected details)
Construction type: Front loader
Range: Performance Plus
Front: Stainless steel
Control panel colour: Stainless steel
Load ratio: 1:9
Load in kg: 27
Drum volume in l: 240
Door opening [Ø] in mm: 415
Door opening angle: 180°
Door hinge: right
Automatic door lock: OneFingerTouch (automatic door lock)

Application
Suitable for marine and offshore use: machines for shipboard and offshore applications; robust design and programmes for heavily soiled laundry.

Performance data (selected)
Tested virucidal efficacy: certified to remove >99.9% of viruses (Benchmark series test criteria)
Specific water consumption (Cottons 60°C, cold water connection): 7.4 l/kg
Specific energy consumption (Cottons 60°C, cold water connection): 0.22 kWh/kg
Specific water consumption (Cottons 60°C, hot water connection): 7.3 l/kg
Specific energy consumption (Cottons 60°C, hot water connection): 0.06 kWh/kg
Water consumption (Cottons 60°C, cold water connection): 201 l
Water consumption (Mops standard 60°C, cold water): 322.2 l (programme example)
Energy consumption (Cottons 60°C, cold water connection): 5.9 kW (instantaneous), 6.28 kWh (Mops standard 60°C programme example)
Programme duration (Cottons 60°C, cold water connection): 57 min
Programme duration (Cottons 60°C, hot water connection): 47 min
Programme duration (Cottons ECO 50°C, cold water): 42 min (example)
Residual moisture (cold rinse): 46%
Residual moisture (hot rinse): 41%
Residual moisture when processing cleaning cloths: approx. 10% (can vary by cloth type)
Spin speed: 1100 rpm
g factor: 541
Tested operating hours: 30,000 (laboratory test reference)

Control and connectivity
Control system: M Touch Pro Plus (colour touch display)
Programmability: Freely programmable (all wash parameters adjustable)
Optimised default settings; customer-specific pre-configuration possible
Features: countdown indicator, selectable display languages, delay start freely selectable, option to enter weight prior to programme start, programme selection via colour frame
Interfaces: LAN and WLAN; Connector Box for external systems; prepared for payment system connections and peak-load/energy management integration

Water connection / drainage (selected)
Cold water: 4 × 1/2" with 3/4" union
Hot water: 2 × 1/2" with 3/4" union
Dump valve: DN 70 (professional dump valve for trouble-free drainage with coarse soiling)

Electrical / heating (standard)
Heating type: Electric
Standard electrical connection example: 3 AC 230V 50Hz
Heater rating: 24 kW
Total connected load: 25.6 kW
Recommended fuse rating: 80 A

Downloads and certificates (examples)
Product sheet, operating instructions, installation diagram, programme chart, hygiene certificate and declarations of conformity are available as PDF downloads from the product page.

Caractéristiques / spécifications techniques

• Brand: Miele
• Commercial model name: PWM 927
• Full product title: PWM 927 [EL DV DD SOM]
• Type: Professional washing machine, electric heating, marine applications
• EAN: 4002516928478
• Article number / Material number: Article number 51927021SOM / Material number 12887730
• Load size (max): 27 kg
• Drum volume: 240 l
• Drum opening diameter: 415 mm
• Spin speed: 1100 rpm
• Residual moisture (typical): 41–46% (programme-dependent)
• g factor: 541
• Heater rating: 24 kW (electric)
• Total connected load (example): 25.6 kW
• Recommended fuse (example): 80 A
• External dimensions (HxWxD): 1646 × 1090 × 1226 mm
• Gross dimensions with packaging (HxWxD): 1793 × 1365 × 1425 mm
• Net weight: 677 kg; Gross weight (with packaging): 734 kg
• Maximum floor load (dynamic/tested): 9375 N
• Typical programme examples: Cottons 60°C, Cottons ECO 50°C, Mops standard 60°C
• Connectivity: LAN, WiFi; prepared for software integration (Miele MOVE Connect / digital solutions)
• Control: M Touch Pro Plus, freely programmable
• Special features: Patented honeycomb drum 2.0, BoostSpin, EcoSpeed, OneFingerTouch automatic door lock, 3D imbalance monitoring
• Suitable for: Marine and offshore use
• Certifications / standards: CE, VDE, splash-proof rating IPX4; certified hygiene test results (see hygiene certificate)
