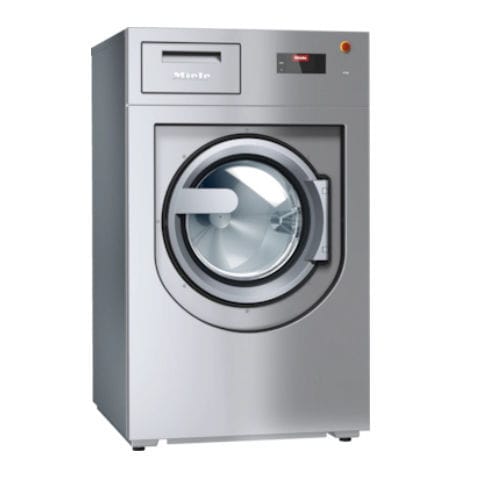

Front-loading washing machine PWM 912 [EL DV DD SOM]

commercialcoin-operatedenergy-saving

Product summary
Professional front-loading washing machine designed for marine and offshore use. Electrically heated with professional DN70 dump valve and 3-compartment detergent drawer. Freely programmable control via M Touch Pro Plus for tailored processes on board and in maritime laundry facilities.

Key features

• Drum volume: 110 l
• Maximum load: 12 kg
• Large door opening Ø 415 mm, door opening angle 180° (right hinge)
• M Touch Pro Plus colour touch display for intuitive operation and programmability
• Automatic door lock with OneFingerTouch
• Patented honeycomb drum 2.0 with scoop ribs for gentle fabric care and efficient wetting
• Innovative suds container for reduced water and energy consumption
• LAN and WLAN (WiFi) connectivity; prepared for digital solutions and external system connections (Connector Box)
• Freely programmable controls (complete programmability)
• BoostSpin intensive dewatering and 3D imbalance monitoring for reliable spin performance
• Reliable drainage via professional DN 70 dump valve

Product benefits (highlights)

• Optimised geometry and suds container deliver low water and energy consumption suitable for shipboard resource limits.
• ECO programmes: up to 42% energy savings (lab example vs standard programme).
• Gentle textile care and high cleaning performance thanks to the patented honeycomb drum 2.0.
• Validated hygiene programmes: Benchmark series machines remove >99.9% of viruses (including coronaviruses) in validated cycles.
• Short programme cycles and professional hardware for rapid turnaround in commercial and maritime laundry operations.
• Extensive connectivity: LAN/WiFi, Connector Box and interfaces for payment/peak-load systems and dispensing integration.
• Fully configurable parameters for bespoke commercial and onboard workflows.

Application / suitability

• Built for marine and offshore environments, meeting heavy-duty shipboard requirements and continuous operation demands.
• Suitable for ship laundries, offshore platforms, crew facilities, and professional self-service installations with options for payment system connection and external integration.

Technical specifications

• Model: PWM 912
• Brand: Miele
• EAN: 4002516502319
• Construction type: Front loader
• Range: Performance Plus
• Front material: Stainless steel
• Control panel colour: Stainless steel
• Control system: M Touch Pro Plus, freely programmable
• Load ratio: 1:9
• Load capacity: 12 kg
• Drum volume: 110 l
• Door opening diameter: 415 mm
• Door opening angle: 180° (right hinge)
• Automatic door lock: OneFingerTouch
• Detergent drawer: 3 compartments
• Maximum number of connections for liquid dispenser pumps: 12
• Dump valve: DN 70
• Heating type: Electric
• Heater rating: 9 kW
• Total connected load: 9.6 kW
• Standard electrical connection (selected variant): 3 AC 230V 50Hz 35 A
• Fuse rating: 35 A
• Spin speed: 1205 rpm
• g-factor: 504
• Residual moisture (cold rinse): 46% (example)
• Residual moisture (hot rinse): 42% (example)
• Programme examples (Cottons 60°C): specific water consumption 6.2 l/kg (cold water connection); specific energy consumption 0.14 kWh/kg (cold water connection); programme duration example 49 min (cold water connection)
• Water consumption (Cottons 60°C): 74.4 l (cold water connection)
• Water consumption (Mops standard 60°C): 142.2 l (cold water example)
• Energy consumption (Cottons 60°C): 1.68 kWh (cold water connection)
• Energy consumption (Mops standard 60°C): 2.5 kWh (cold water example)
• Programme durations (examples): Cottons 60°C ~49 min (cold); Cottons 60°C with hot+cold (hot rinse) ~42 min
• Recycling rate: 91% (water recycling option metrics)
• External dimensions (H x W x D): 1350 x 799 x 924 mm
• Gross dimensions (including packaging) H x W x D: 1475 x 1090 x 1130 mm (packaged)
• Net weight: 287 kg
• Gross weight (with packaging): 306 kg
• Maximum floor bearing capacity (dynamic) example: 4483 N
• Tested operating hours (example): 30000 h (laboratory test reference)
