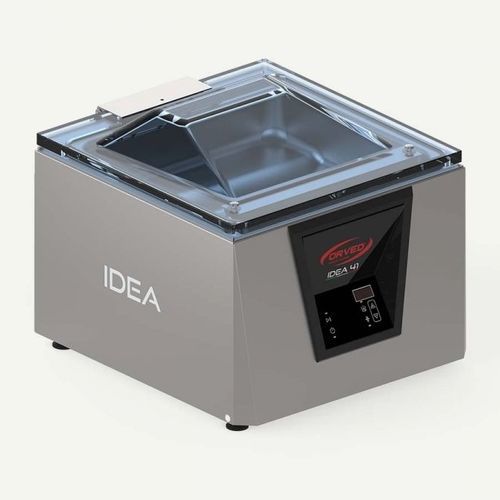

The Idea Line includes all the advantages of Orved technology: absolute vacuum sensor for perfect vacuum in all circumstances, hydroformed vacuum chamber for long-lasting quality and ease of cleaning, power sealing for multiple sealing of overlapping vacuum bags.
Thanks to its internal sensors, the packaging machines of the idea line, can ensure a perfect vacuum in any conditions with any type of product, food or non-food or liquids.
The digital control panel includes a memory of 10 vacuum programs, with the possibility to add gas (MAP) or to perform a dearation program (degas) to create special vacuum cycles for every customer’s need.
The robust chamber with rounded steel edges allows easy cleaning after use.
BODYWORK
Stainless steel
VACUUM PUMP
20mc/h
MAX VACUUM LEVEL
2 mbar
DIMENSIONS
531x614x461h mm
VACUUM CHAMBER DIMENSIONS
440x448x190h mm
WEIGHT
61,9 kg
VOLTAGE
220-240V / 50-60Hz - 900-1200W
MAX BAG DIMENSIONS
400 x 450 mm
SEALING BAR
415 mm
INSTALLATION
counter top
Absolute vacuum sensor, memory of 10 different user programs, programs for vacuum in containers or external bags, manual degas programs, automatic packaging cycle control with automatic start&stop, automatic oil cleaning.
Orved vacuum chamber is made with hydroforming process that ensure smooth surfaces, rounded corners, uniform thickness for easy cleaning and long-lasting quality.
